Small Coreless DC Motor

  • Small 17MM Brush Coreless DC Motor 1722R
  • Small 17MM Brush Coreless DC Motor 1722R
  • Small 17MM Brush Coreless DC Motor 1722R
  • Small 17MM Brush Coreless DC Motor 1722R
  • Small 17MM Brush Coreless DC Motor 1722R
Small 17MM Brush Coreless DC Motor 1722RSmall 17MM Brush Coreless DC Motor 1722RSmall 17MM Brush Coreless DC Motor 1722RSmall 17MM Brush Coreless DC Motor 1722RSmall 17MM Brush Coreless DC Motor 1722R

Small 17MM Brush Coreless DC Motor 1722R

  • Model: 1722R
  • 17mm small coreless dc motor
  • Voltage: 6~26V
  • Brand:Kegu Motor
  • Product description: Shen zhen Ke Gu Technology Co., Ltd. is a high-tech enterprise focusing on the development, production and sales of coreless motors. Kegumotor provide 1722R small coreless dc motor, coreless brushless
  • INQUIRY

17mm Coreless DC Motor, Model 1722 series

1718 coreless motor

17mm coreless motor

Motor Name
1722R
Precious metal brushes coreless motor

Typical Application
Medical equipment、
Home appliance、
Industrial automation
Nominal voltage
7.4V
No load current
60mA
Stall torque
167 g.cm
Efficiency
63%

Induction of the High Torque 1722R 17MM Series Coreless DC Motor


This type of 1722R 17MM series Tattoo Equipment Coreless DC Motor will offer a good specification with high speed and torque to customer’s equipment and lead high precise, reliable control, lower vibration and noise on the tattoo Equipment which can offer the customer with good tattoo experience. We can make the customized shaft and holes at the front cover. Depending on the model, yet can nonetheless deliver the necessary performance – thanks to our high efficiency factors of up to 90 percent. Most of important, we can customize motor parameters for our customers which will give full play to product advantages.

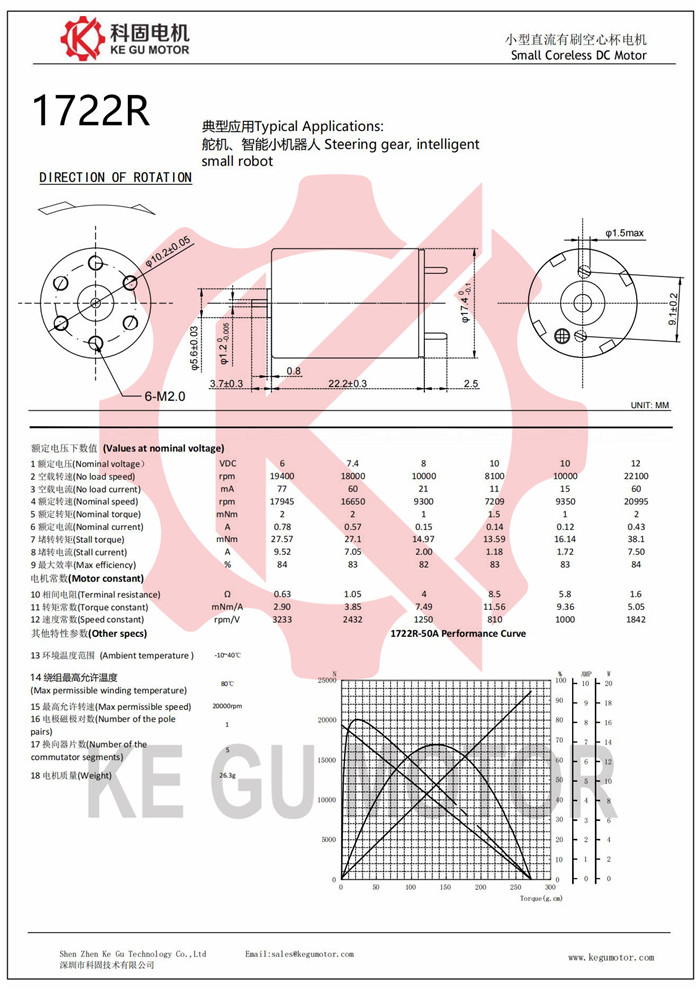

Specification of the High Torque 1722R Series Coreless DC Motor


Feature and Application of High Torque 1722R 17MM Series Coreless DC Motor



This 1722R 17MM Series coreless motor is small ,light, precision, reliable control and delicately operate, which can offer high torque and speed for tattoo equipment and medical equipment.

Small vibration offering the best tattoo experience for customer.

Reliable and stable with long lifetime.

100% complete inspection of the materials after we get from our suppliers and products before ex-factory to ensure the quality for our customer.

The perfect substitute for European motors which can save lots of time and cost for our customer.



80% of coreless motors are customized. At present, the core key materials and components are still imported. KEGU MOTOR provide domestic customers to use international brand quality coreless motors with a higher performance, and continue to improve their product series . Prepare inventory according to plan, independently produce and process customized parts, so that the quality standards and process technology are consistent with the Swiss Maxon.

Take the market with technology and products
Deeply cultivating the industry, through years of hard work and accumulation, we have all kinds of coreless dc motor, which can be quickly mass-produced, and we have obtained a number of motor appearance patents and dozens of utility model patents. Become the domestic manufacturer with the largest shipment of large coreless motors above 4mm, the most complete model, the fastest delivery speed, and the most cost-effective manufacturer.
