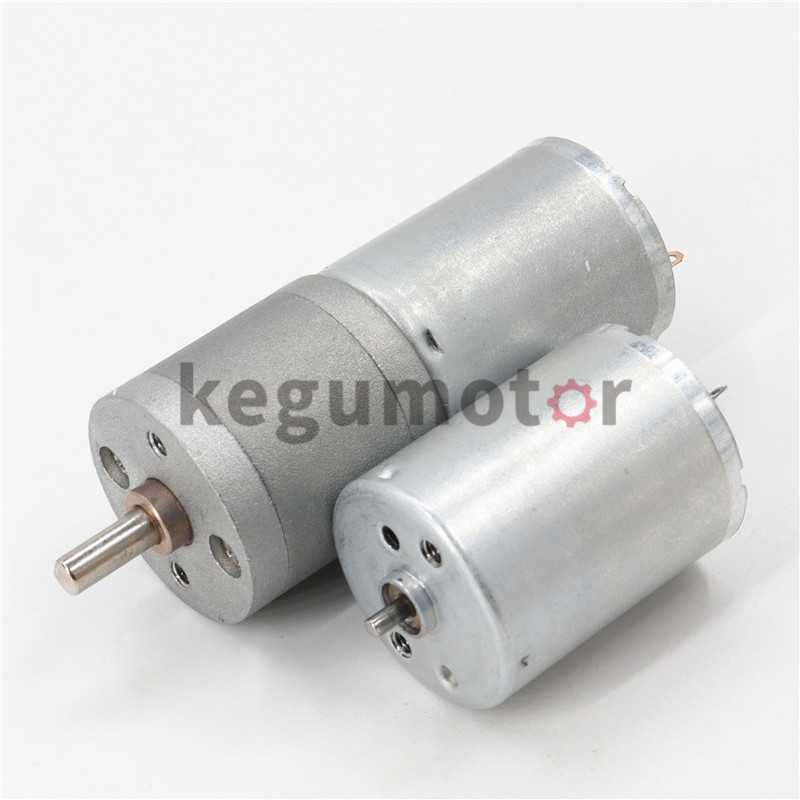

Ø 25mm Micro DC Gear Motor

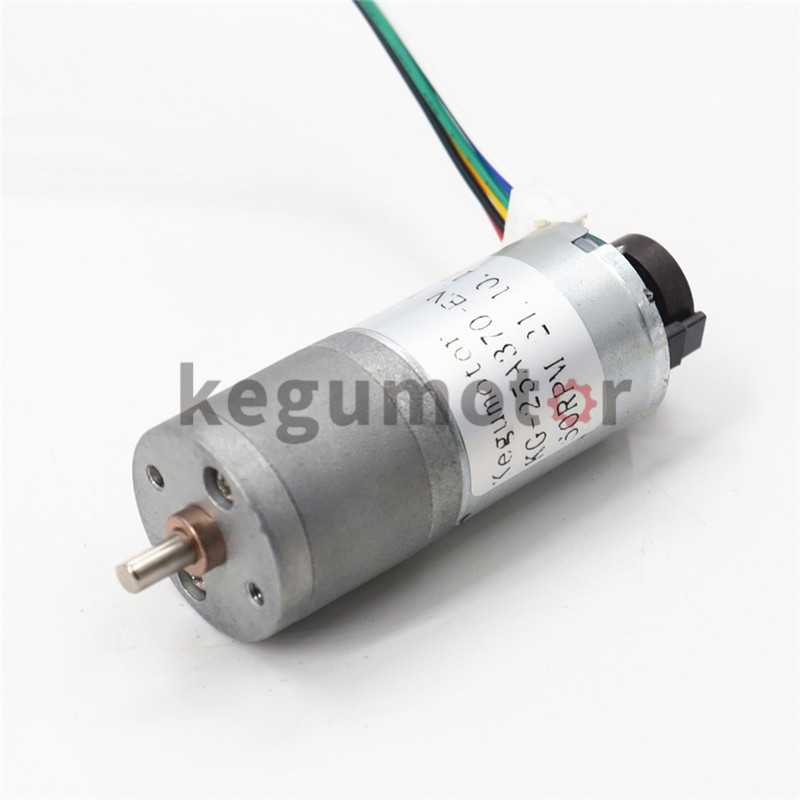

KG-25A370-EN 25mm dc gear motor with encoder

KG-25A370-EN 25mm dc gear motor with encoder

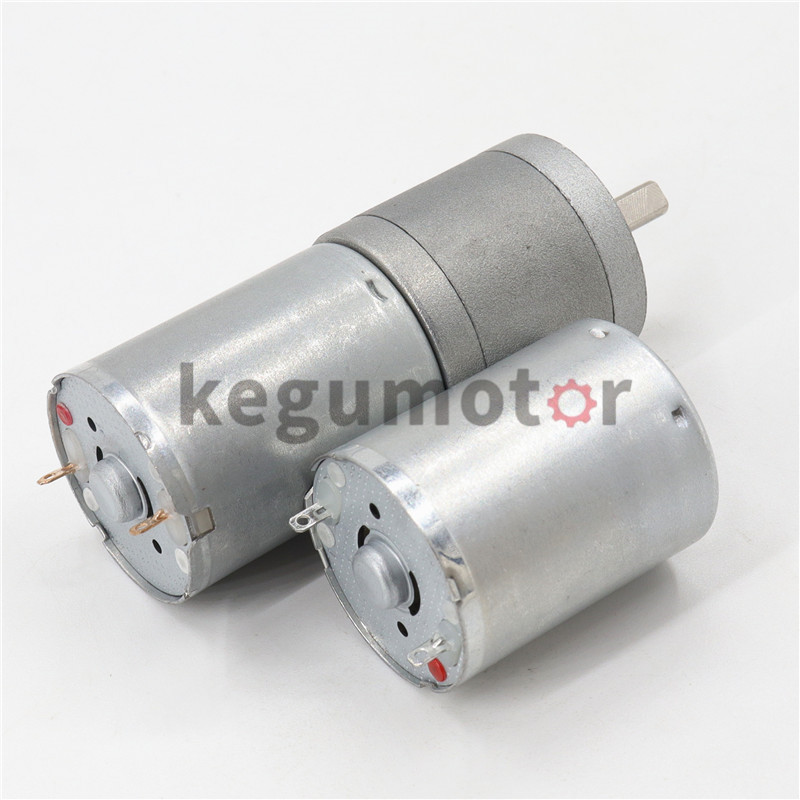

Model: KG-25A370-en 25mm metal gear motor
Gearbox: 25mm metal gearbox
Dia：25mm Motor：KRF-370 dc motor
25mm gearmotor with encoder, Kegu motor
Product description: Kegumotor provides a wide range of encoders to combine with the complete portfolio of DC, brushless and stepper motors. In the area of encoders, Kegumotor offers 2- and 3-channel incremental magnetic
INQUIRY

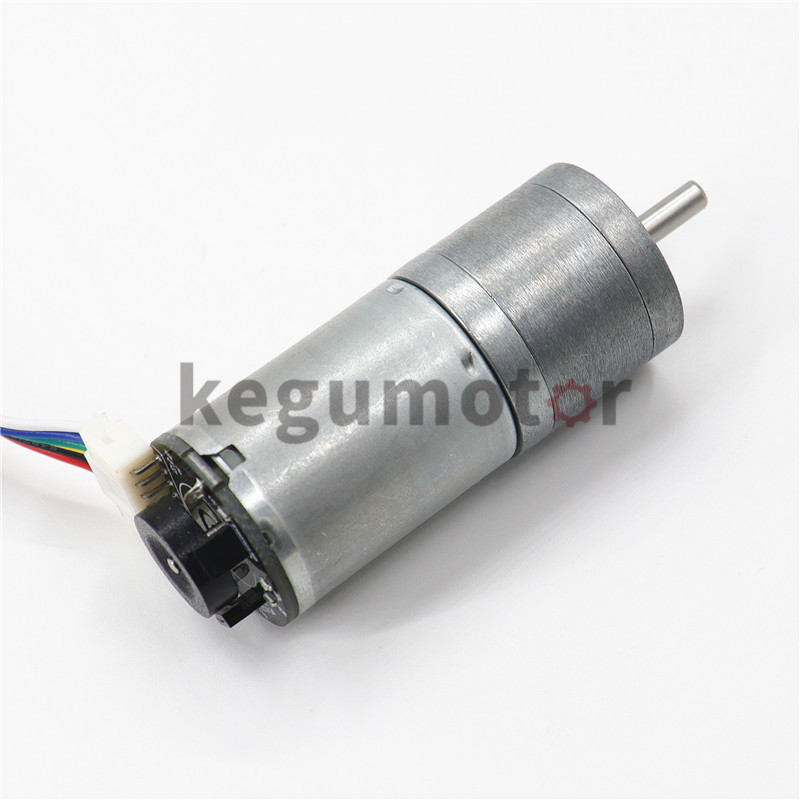

24V 500Rpm 25mm Geared DC Motor with Encoder

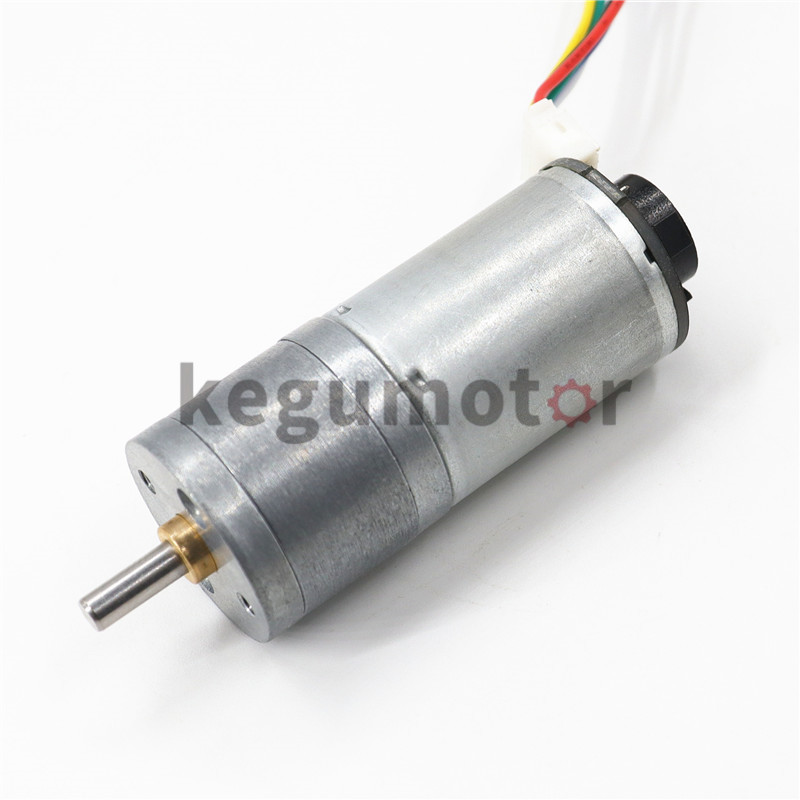

25mm dc gear motor 25mm gear motor with encoder

Product model: KG-25A370-EN

Rated voltage: 3-24 (V)

Rated speed: 3-1500 (RPM)

Rated torque: 0.01-1 (NM)

Rated current: 0.1-1 (A)

Rated power: 0.1-6 (W)

Efficiency: 80 (%)

Dimensions: φ25 (mm)

These 25 mm diameter gearmotors are available in a wide range of gear ratio. All versions are available with integrated 12PPR encoders on the motor shafts.

The incremental encoders from Kegumotor are constructed according to optical or magnetic principles as well as in a single-chip version. The encoder supplies two 90° phase-shifted square wave signals with up to 10,000 pulses. In the 3-channel version, an additional index pulse is available per motor revolution.

Kegumotor provides a wide range of encoders to combine with the complete portfolio of DC, brushless and stepper motors. In the area of encoders, kegumotor offers 2- and 3-channel incremental magnetic and optical encoders

Aplication:

Smart Locks: Door Lock, Fingerprint Lock, Express Cabinet Lock, Bike Lock

Household Appliances: Hair Curler

Financial Medical Equipment: Projector

Industrial Equipment: Air Switch

Intelligent Robot: Mechanical Arm, UAV(Unmanned Aerial Vehicle), Service Robot

Drawing of 25mm dc spur gear motor with encoder

Gear ratio and length L of gearbox

Number of stages	3	4	5	6	7	8
Gear ratio	4.4	16	35.5	59	130	286
	10	21	46.9	78	172	378
				103	226	500
Length of gearbox L(mm）	19	19	21	23	25	27

SPECIFICATIONS：

MODEL	V	NO LOAD		RATED LOAD				STALL
MODEL	V	SPEED rpm	CURRENT A	SPEED rpm	CURRENT A	TORQUE Nm	OUTPUT W	TORQUE Nm	CURRENT A
KG-25A370-EN-10	12	565	0.1	450	0.3	0.034	1.65	0.15	1.0
KG-25A370-EN-21	12	560	0.2	450	1.0	0.098	4.7	0.49	4.0
KG-25A370-EN-35.5	12	250	0.08	210	1.2	0.09	2.2	0.58	2.9
KG-25A370-EN-46.9	6	130	0.08	100	0.4	0.09	1.0	0.63	2.0
KG-25A370-EN-78	24	165	0.12	140	0.4	0.29	4.4	1.47	1.9
KG-25A370-EN-103	6	55	0.08	45	0.4	0.195	0.95	1.22	2.0
KG-25A370-EN-130	12	66	0.09	58	1.2	0.29	1.82	1.47	2.5
KG-25A370-EN-172	12	28	0.04	22.5	0.1	0.29	0.7	1.47	0.3
KG-25A370-EN-226	6	26	0.08	20	0.35	0.44	0.9	1.47	2.0
KG-25A370-EN-378	6	16	0.08	12	0.35	0.68	0.85	1.47	2.0
KG-25A370-EN-500	6	12	0.08	10	0.35	0.78	0.85	1.47	2.0

Remarks:Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.

Here you can find our dc gear motors with encoder, high torque with or without worm gear, all kinds of small geared motors. Electric motor 12v/ 24v DC types with or without gear reducer, custom design brushed motor used for lock. turn your entire house into a smart home with savant automation. We can make a motor with custom specifications, if the micro dc gear motor you request is in stock, delivery time of sample is 3-4days. For mass production delivery time is 2 – 3 weeks. MOQ(minimum order quantity) is 1+ pc. You can send us an inquiry and tell us exactly what you are looking for. All the small DC gear motors are 100% tested before shipping by our professional QC team. Factory Quality. On Time. To Spec. How we process shipment? For samples and small quantities, we will ship by DHL door to door, because it is reliable in a fast way. You can also provide your DHL/Fedex/TNT account for shipping too. We can arrange shipment by sea or air for mass production.
