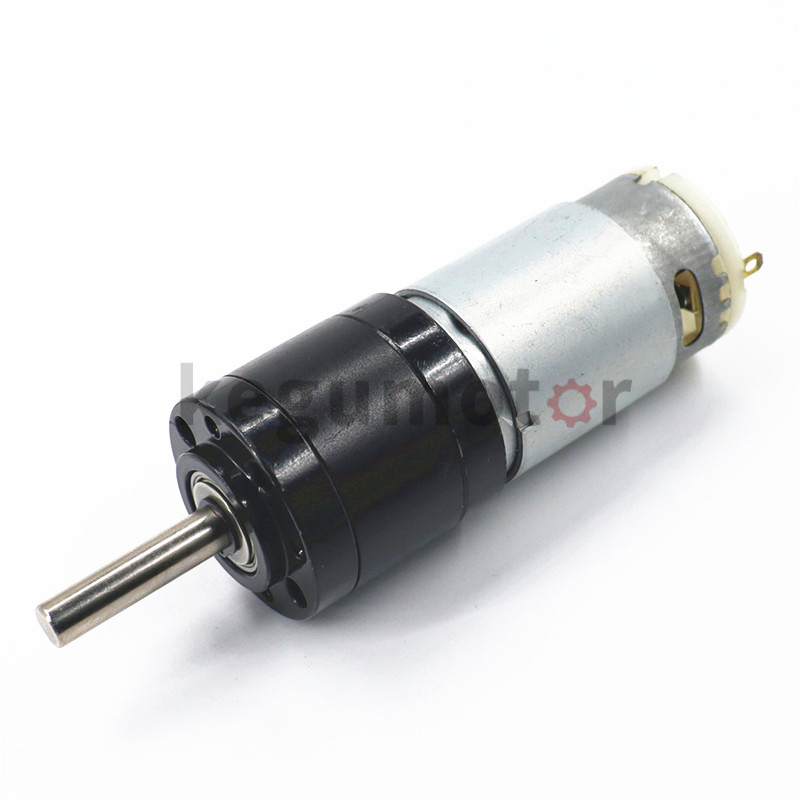

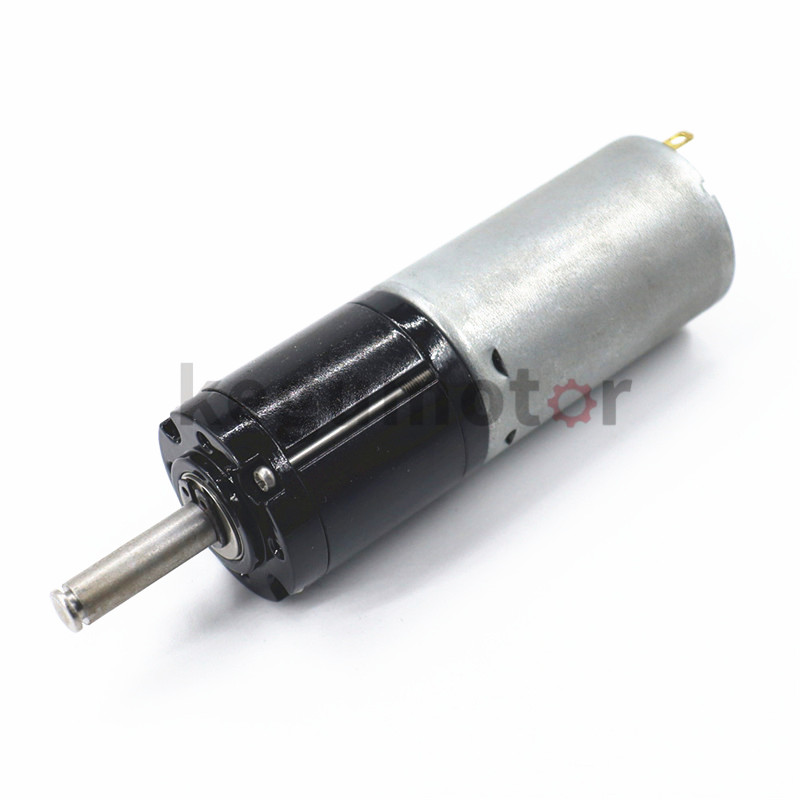

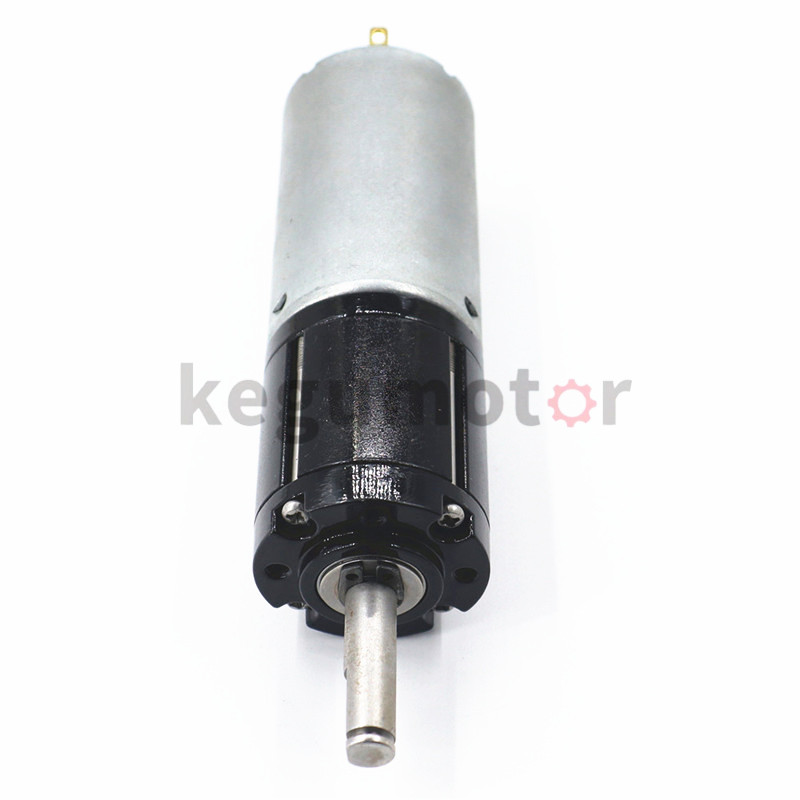

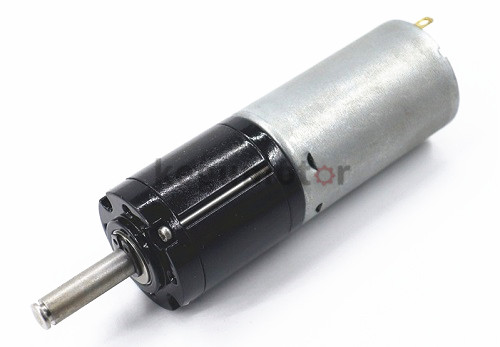

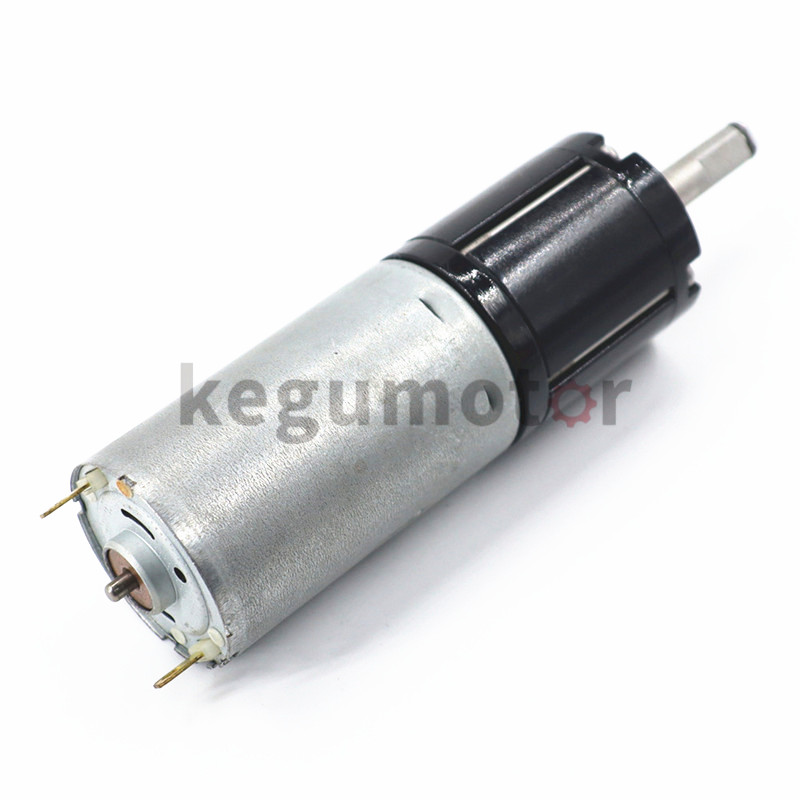

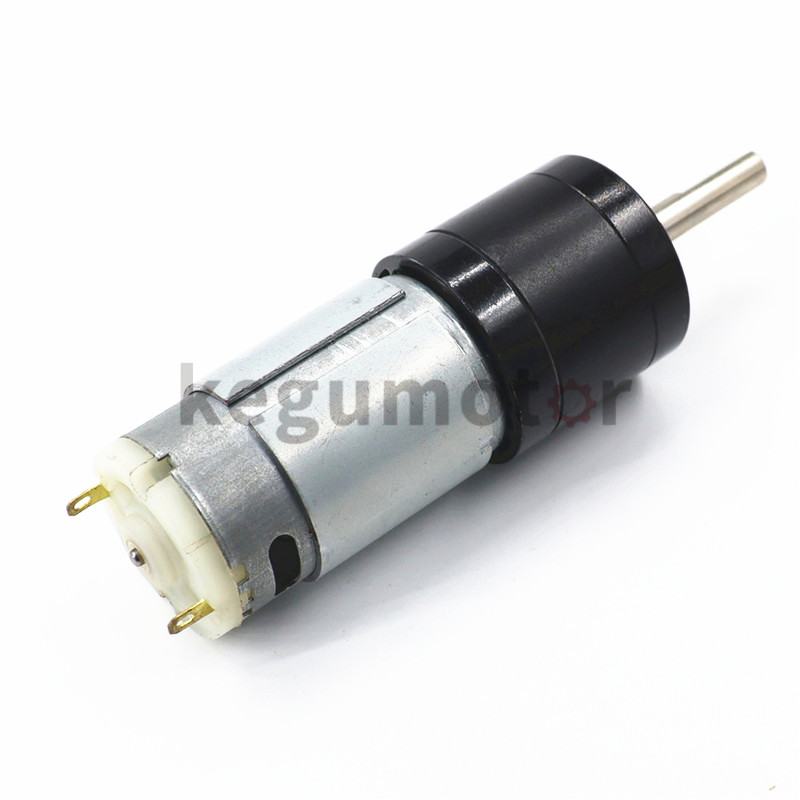

mini 28mm planetary reduction gearbox motor
large torque,long life,low noise
1) Model number: KG-28P395
2) Brand name: Kegu Motor
3) Output power: less than 1.5w
4) Dia Ø28× total length (48.9~56.1)mm, exclude output shaft length

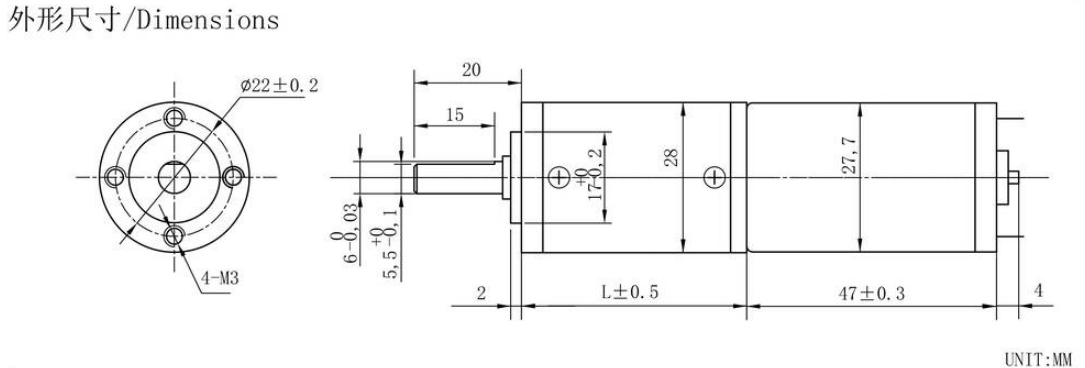

Drawing of 28mm planetary gear motor
Data Sheet
MODEL
VOLTAGE
NO- LOAD
AT MAXIMUM EFFICIENCY
STALL TORQUE
RATIO
LENGTH OF GEAR BOX(L)
MATCH THE MOTOR
LENGTH OF MOTOR(L1)
SPEED
CURRENT
SPEED
CURRENT
TORQUE
OUTPUT
TORQUE
CURRENT
V
r/min
A
r/min
A
mN.m
Kg.cm
W
mN.m
Kg.cm
A
mm
mm
KG-28P395-27
24
310
0.15
248
0.40
123.1
1.23
5.5
430.9
4,31
1.6
27
30.9
KRS-395
47
KG-28P395-71
24
115
0.15
92
0.35
216.3
2.21
5.5
757.1
7.74
1.6
71
37.3
KRS-395
47
KG-28P395-100
24
75
0.15
60
0.35
324.5
3.25
5.5
1135.8
11.38
1.6
100
37.3
KRS-395
47
KG-28P395-263
24
28
0.15
22.4
0.35
648.9
6.52
5.5
2271.2
22.82
1.6
263
43.7
KRS-395
47
KG-28P395-720
24
11
0.15
8.8
0.35
2100
21.22
5.5
7,350.0
74.27
1.6
720
43.7
KRS-395
47
Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
