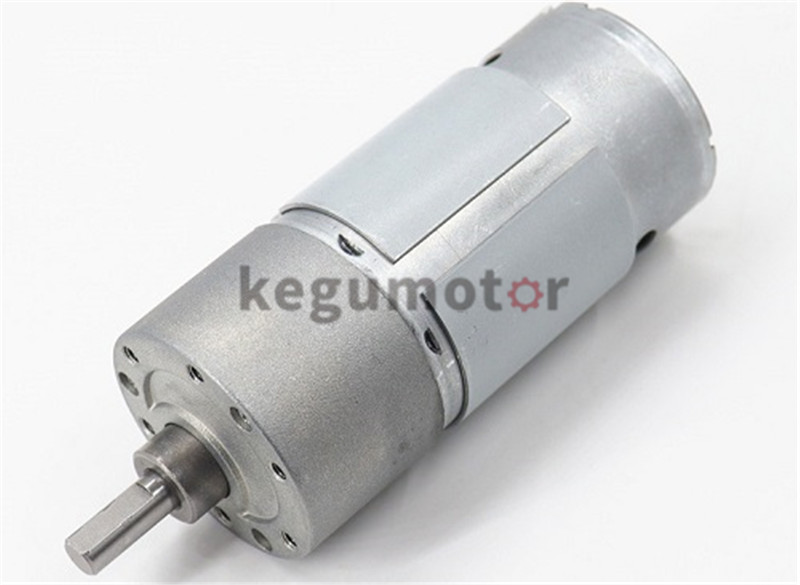

Product model: KG-37B555
Rated voltage: 3-24 (V)
Rated speed: 3-2500 (RPM)
Rated torque: 0.04-3 (NM)
Rated current: 0.3-3 (A)
Rated power: 2-30 (W)
Efficiency: 80 (%)
Dimensions: φ37 (mm)
Application:
Smart Locks: Door Lock, Fingerprint Lock, Express Cabinet Lock, Bike Lock
Household Appliances: Hair Curler
Financial Medical Equipment: Projector
Industrial Equipment: Air Switch
Intelligent Robot: Mechanical Arm, UAV(Unmanned Aerial Vehicle), Service Robot
Drawing of 37mm dc spur gear motor
Gear ratio and length L of gearbox
Number of stages
2
3
4
5
6
Gear ratio
6
16.7
45
110
330
10
23.3
50
121
350
30
60
135
405
70
150
420
90
180
450
100
210
490
250
540
270
630
300
810
Length of gearbox L(mm）
19
21.5
24
26.5
29
SPECIFICATIONS：
|
MODEL |
V |
NO LOAD |
RATED LOAD |
STALL |
|||||
|
SPEED rpm |
CURRENT A |
SPEED rpm |
CURRENT A |
TORQUE Nm |
OUTPUT W |
TORQUE Nm |
CURRENT A |
||
|
KG-37B555-10 |
12 |
450 |
0.3 |
380 |
0.83 |
0.13 |
5.34 |
0.88 |
4.3 |
|
KG-37B555-30 |
12 |
150 |
0.3 |
126 |
0.83 |
0.36 |
4.78 |
2.35 |
4.3 |
|
KG-37B555-50 |
12 |
90 |
0.3 |
76 |
0.83 |
0.53 |
4.28 |
3.5 |
4.3 |
|
KG-37B555-70 |
12 |
64 |
0.3 |
54 |
0.83 |
0.76 |
4.32 |
4.9 |
4.3 |
|
KG-37B555-90 |
12 |
50 |
0.3 |
42 |
0.83 |
0.98 |
4.3 |
6 |
4.3 |
|
KG-37B555-150 |
24 |
24 |
0.2 |
20 |
0.5 |
1.66 |
3.5 |
6.5 |
3.0 |
|
KG-37B555-270 |
24 |
13 |
0.2 |
11 |
0.5 |
2.9 |
3.38 |
7 |
3 |
|
KG-37B555-630 |
12 |
5.5 |
0.3 |
4.5 |
0.65 |
4.3 |
2.03 |
7 |
3.4 |
Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
