BL4525O BL4525 45mm Out Rotor BLDC Brushless DC Motor

BL4525O BL4525 OD Diameter 45mm Small Out Rotor Brushless DC BLDC Motor -Typical Application

Communication Device: Antenna RCU

Automobile Parts: Micro Pump, Switcher

Home Application: White Goods, Small Appliance, Kitchen Appliance,

Smart Home, Micro Actuate

Medical Apparatus: Medical Pump, Liquid Pump, Gas Pump

Industry Equipment: Micro Pump, Micro Valve, Instrument, Meter

Business Equipment: Scanner, Cash Register

Personal Care: Skin Care, Beauty Apparatus

Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-30000hrs

BL4525 outrunner brushless motor for massage gun 4000rpm

Specifications:

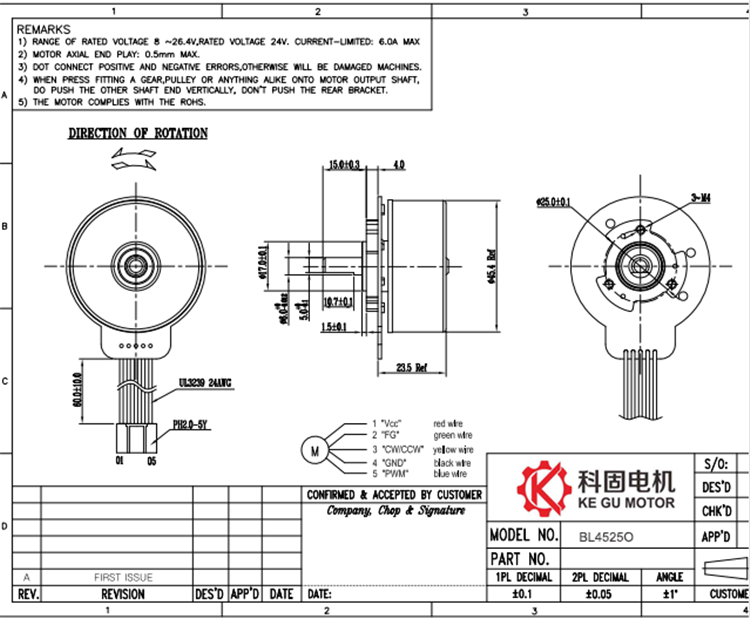

• Size: Ø45.0* 25.0mm

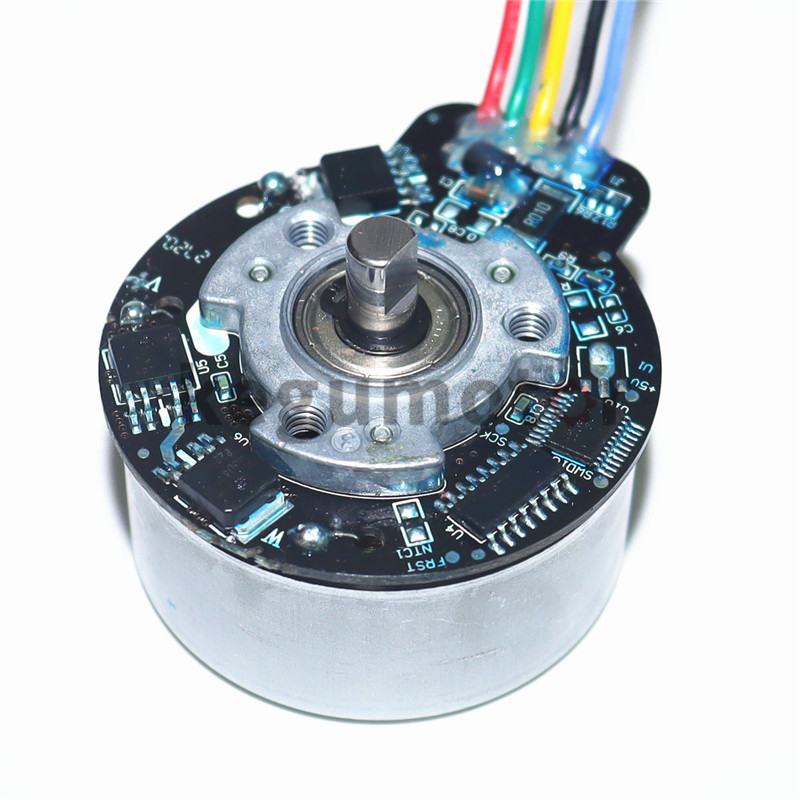

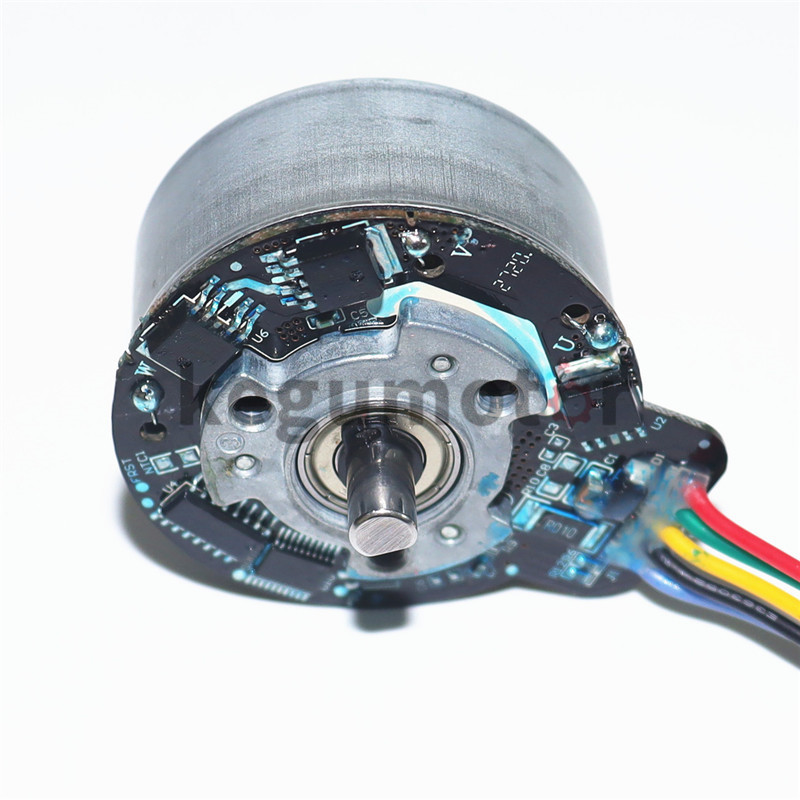

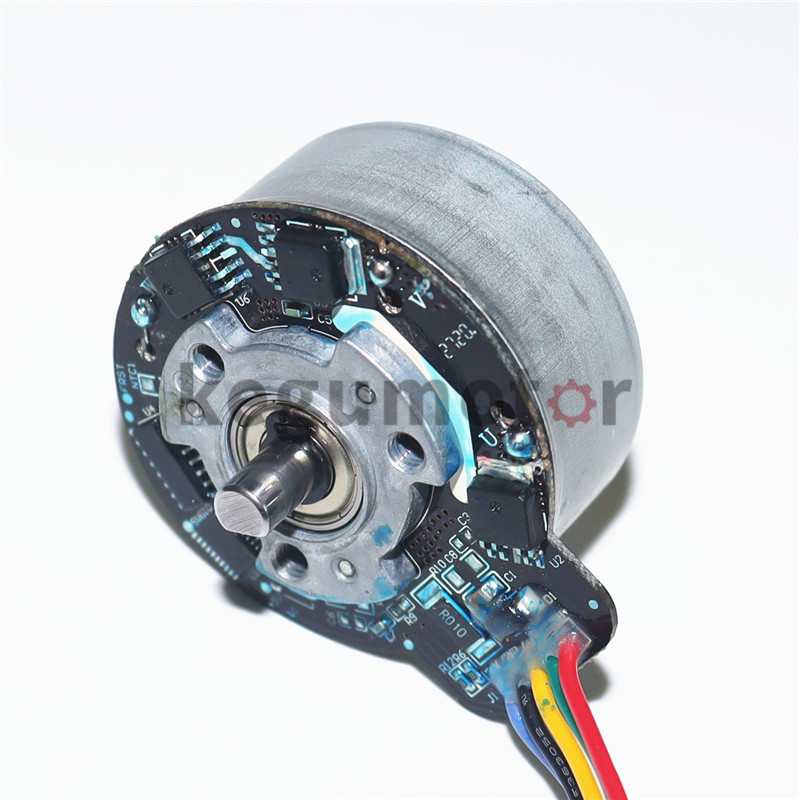

• Built-in driver (Inbuilt controller with hall-effect sensor)

• PWM pulse wide speed range

• Clockwise/counter-clockwise rotation

• FG speed feedback signal

• Low EMC

• Low noise

• Long life: 20000hrs Min.

• Over-current protection

• Over-voltage protection

• Under-voltage protection

• OEM and ODM orders are welcome

• The design can be customized

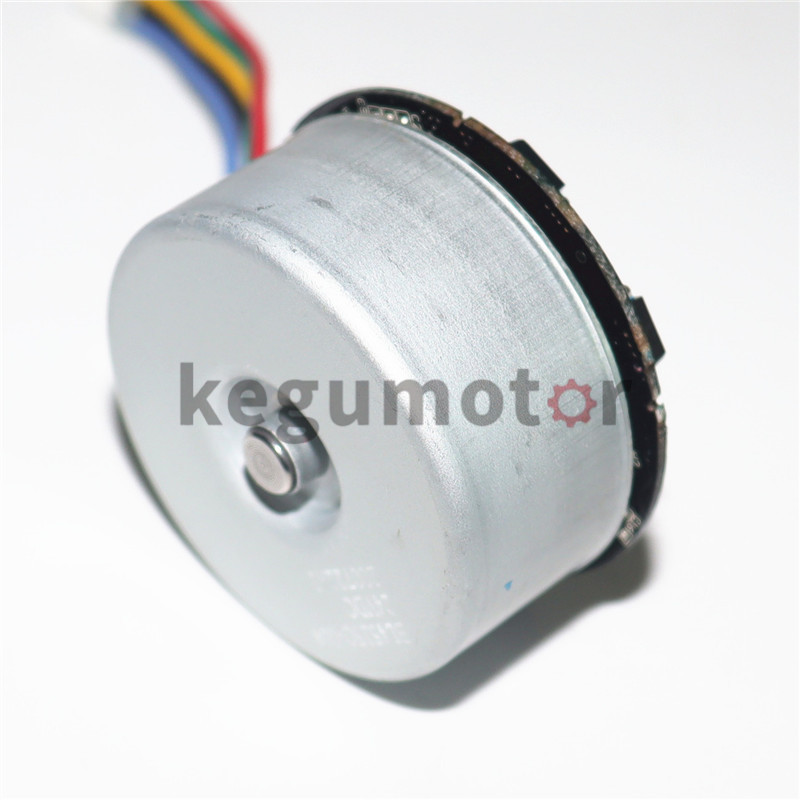

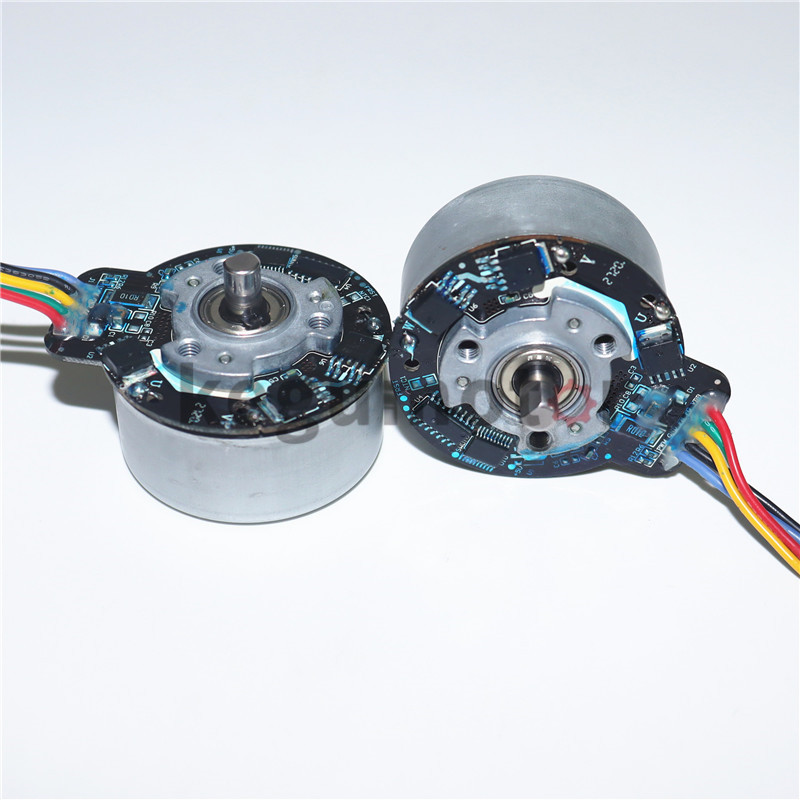

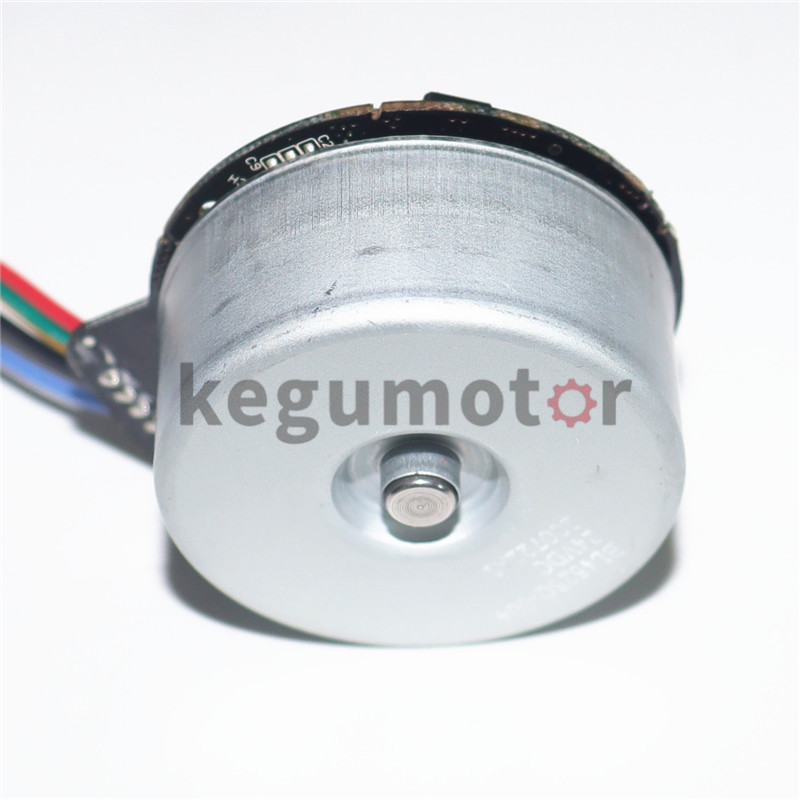

OD 45mm out rotor small bldc brushless dc motor
