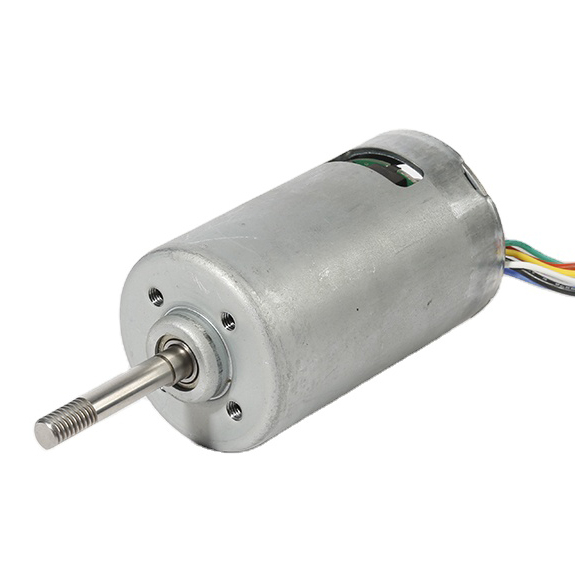

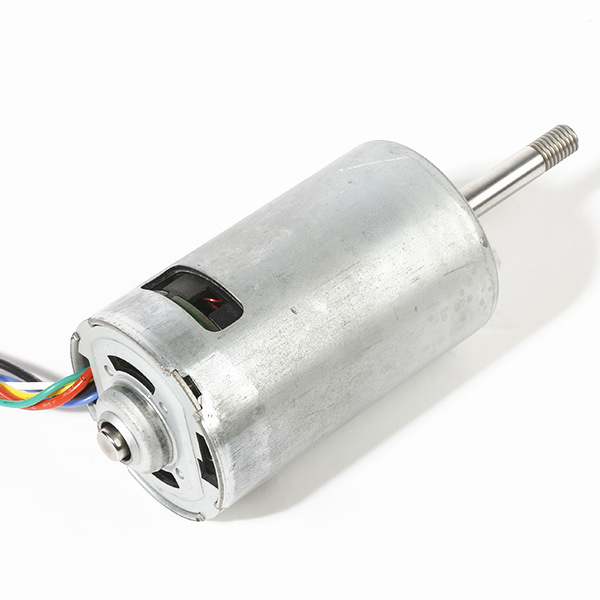

Ø 52mm Micro BLDC Brushless DC Motor

BL5285 BL5285i B5285M 52mm inner rotor brushless dc motor

Model: BL5285 BL5285i B5285M
OD: 52mm Body Length: 85mm
Voltage: 6~26V
Product description：BL5285,BL5285I Built-in driver, Hall sensor,Hall-effect sensor,Inbuilt controller with hall-effect sensor,Controller with hall sensor, PWM pulse, CW CCW, FG speed feedback signal,
Product description: BL5285 Brushless Motor|Kegu Motor, BL5285i, B5285M,BL5285 Motor, BL5285 inner rotor,,Inbuilt controller with hall-effect sensor,Controller with hall sensor,micro brushless dc motor,bldc, Fine quality
INQUIRY

BL5285I BL5285 B5285M 52mm inner rotor bldc brushless dc motor Inbuilt controller with hall-effect sensor,

Size: φ52.0* 85.0mm
Built-in driver (Inbuilt controller with hall-effect sensor)
PWM pulse wide speed range
Clockwise/counter-clockwise rotation
FG speed feedback signal
Low EMC
Low noise
Long life: 20000hrs Min.
Over-current protection
Over-voltage protection
Under-voltage protection
OEM and ODM orders are welcome
The design can be customized
Characters:
1.Small size dc brushless motor with low speed and big torque
2.Suitable to small diameter, low noise and big torque application
3.Can equip with Gear Reducer

BL5285

Output Power: 20W~150W

Weight: 700g (Approx.)

Brushless DC Motor-Typical Application

Home Application: White Goods, Small Appliance, Fanner, Electric Curtain

Medical Apparatus: Medical Pump, Blood Pressure Meter, Surgery Tools, Medical Stirrer, centrifugal

Machine

Industry Equipment: Electric Valve, Portable Screwdriver, Air Pump, Water Pump, Vacuum Pump

Business Equipment: Printer, Copier, Projector, Scanner, Cash Register

Personal Care: Hair Dryer, Electric Shaver, Massager

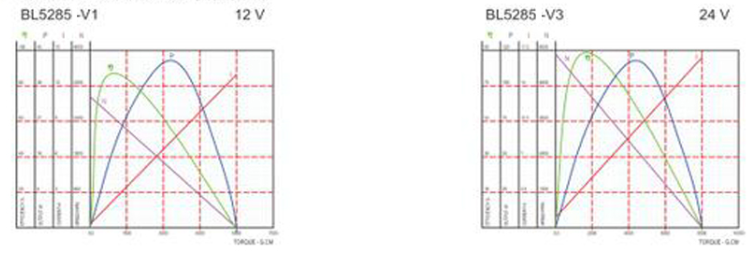

Model	Voltage(V)		No Load		Rated Load				Stall
Model	Operating Range	Rated	Speed (rpm)	Current (A)	Torque (mNm)	Speed (rpm)	Current (A)	Output P. (W)	Torque (mNm)	Current (A)
BL5285-V1	8v-16v	12	2920	0.28	153	2190	3.4	34	616	12.8
BL5285-V2	8v-26v	18	4400	0.33	204	3150	4.4	65	729	15.0
BL5285-V3	8v-26v	24	5800	0.39	204	4350	4.5	90	806	16.6

Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-15000hrs

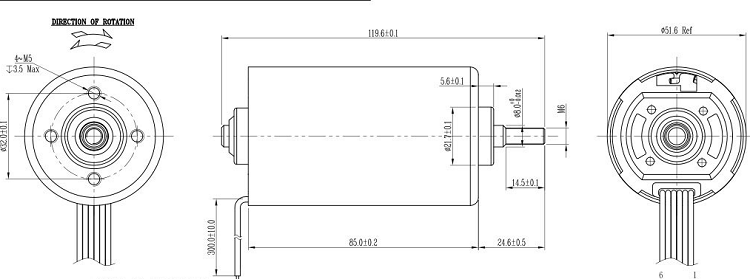

BL5285 BL5285I B5285M Outline Drawing: Usable machine screw length 2.0mm max. from motor mounting surface Unit: Millimeter
