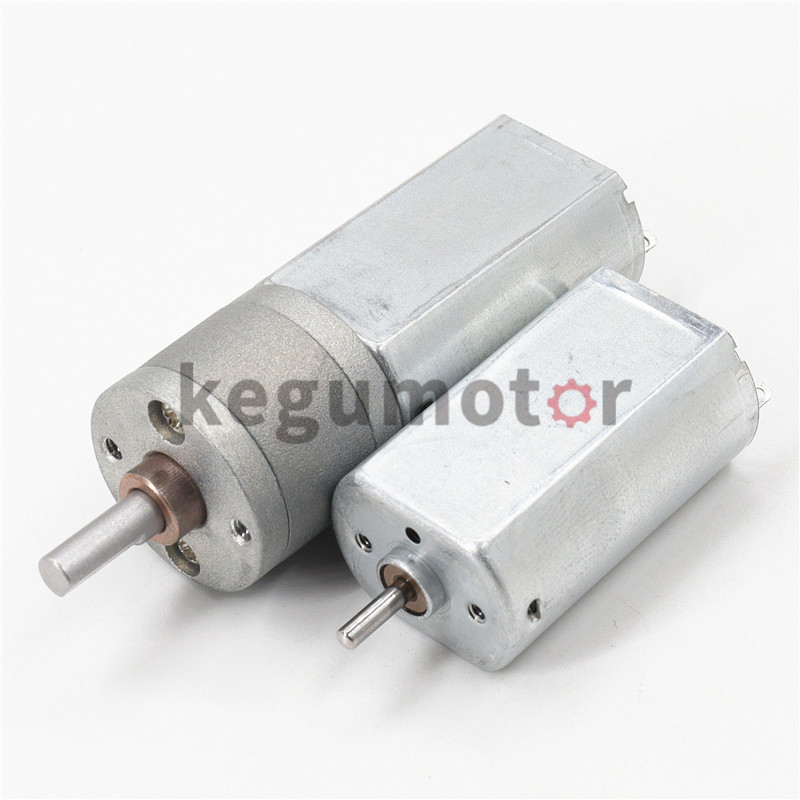

Product model: KG-20A180
Rated voltage: 2-24 (V)
Rated speed: 5-1500 (RPM)
Rated torque: 0.005-0.4 (NM)
Rated current: 0.1-1.0 (A)
Rated power: 0.1-4 (W)
Efficiency: 80 (%)
Dimensions: φ20 (mm)
Aplication:
Smart Locks: Door Lock, Fingerprint Lock, Express Cabinet Lock, Bike Lock
Household Appliances: Hair Curler
Financial Medical Equipment: Projector
Industrial Equipment: Air Switch
Intelligent Robot: Mechanical Arm, UAV(Unmanned Aerial Vehicle), Service Robot
Gear ratio and length L of gearbox
|
Number of stages |
3 |
4 |
5 |
6 |
7 |
|
|
Gear ratio |
9.18 |
25 |
50 |
100 |
250 |
|
|
12 |
31.2 |
62.5 |
125 |
312 |
||
|
|
|
78 |
156 |
390.6 |
||
|
|
|
|
195 |
488 |
||
|
Length of gearbox L(mm） |
15.7 |
15.7 |
17.2 |
18.7 |
20.2 |
|
SPECIFICATIONS：
|
MODEL |
V |
NO LOAD |
RATED LOAD |
STALL |
|||||
|
SPEED rpm |
CURRENT A |
SPEED rpm |
CURRENT A |
TORQUE Nm |
OUTPUT W |
TORQUE Nm |
CURRENT A |
||
|
KG-20A180-12 |
3 |
800 |
0.55 |
645 |
1.3 |
0.019 |
1.35 |
0.09 |
4.9 |
|
KG-20A180-25 |
6 |
240 |
0.08 |
190 |
0.45 |
0.045 |
1 |
0.19 |
2.0 |
|
KG-20A180-31 |
9 |
300 |
0.09 |
240 |
0.4 |
0.045 |
1.13 |
0.24 |
1.7 |
|
KG-20A180-50 |
2.4 |
166 |
0.27 |
127 |
1.0 |
0.055 |
0.66 |
0.24 |
3.2 |
|
KG-20A180-62.5 |
12 |
105 |
0.06 |
80 |
0.22 |
0.09 |
0.83 |
0.29 |
0.75 |
|
KG-20A180-100 |
15 |
135 |
0.15 |
115 |
0.5 |
0.19 |
0.39 |
0.7 |
2.3 |
|
KG-20A180-125 |
12 |
80 |
0.1 |
65 |
0.4 |
0.175 |
1.2 |
0.44 |
1.8 |
|
KG-20A180-250 |
2.4 |
24 |
0.21 |
19 |
0.52 |
0.24 |
0.5 |
0.4 |
1.6 |
|
KG-20A180-195 |
6 |
64 |
0.2 |
55 |
0.67 |
0.29 |
1.72 |
0.7 |
3.3 |
|
KG-20A180-312 |
6 |
25 |
0.12 |
20 |
0.45 |
0.38 |
0.8 |
0.5 |
2.0 |
|
KG-20A180-488 |
12 |
9 |
0.05 |
7 |
0.1 |
0.34 |
0.25 |
0.7 |
0.5 |
