Product Type: DC Brushed Motor
Product model: KG-20A130
Rated voltage: 2-24 (V)
Rated speed: 5-1500 (RPM)
Rated torque: 0.005-0.4 (NM)
Rated current: 0.1-0.8 (A)
Rated power: 0.1-4 (W)
Efficiency: 80 (%)
Dimensions: φ20 (mm)
Aplication:
Smart Locks: Door Lock, Fingerprint Lock, Express Cabinet Lock, Bike Lock
Household Appliances: Hair Curler
Financial Medical Equipment: Projector
Industrial Equipment: Air Switch
Intelligent Robot: Mechanical Arm, UAV(Unmanned Aerial Vehicle), Service Robot

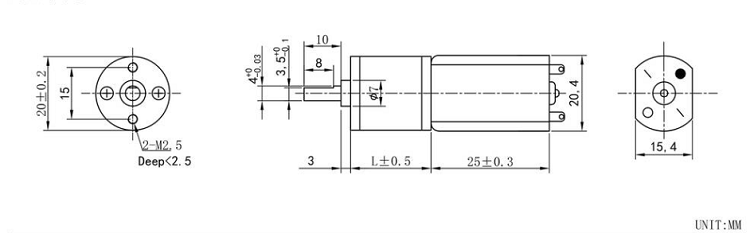

Drawing of 20mm dc spur gear motor
Gear ratio and length L of gearbox
|
Number of stages |
3 |
4 |
5 |
6 |
7 |
|
|
Gear ratio |
9.2 |
25 |
50 |
100 |
250 |
|
|
12 |
31.2 |
62.5 |
125 |
312 |
||
|
|
|
78 |
156 |
390.6 |
||
|
|
|
|
195 |
488 |
||
|
Length of gearbox L(mm） |
15.7 |
15.7 |
17.2 |
18.7 |
20.2 |
|
SPECIFICATIONS：
|
MODEL |
V |
NO LOAD |
RATED LOAD |
STALL |
|||||
|
SPEED rpm |
CURRENT A |
SPEED rpm |
CURRENT A |
TORQUE Nm |
OUTPUT W |
TORQUE Nm |
CURRENT A |
||
|
KG-20A130-9.2 |
12 |
1300 |
0.1 |
1000 |
0.35 |
0.01 |
1.5 |
0.075 |
1.5 |
|
KG-20A130-25 |
6 |
270 |
0.14 |
200 |
0.45 |
0.03 |
0.75 |
0.14 |
1.3 |
|
KG-20A130-31 |
12 |
200 |
0.05 |
160 |
0.12 |
0.024 |
0.42 |
0.11 |
0.35 |
|
KG-20A130-50 |
8 |
265 |
0.17 |
200 |
0.57 |
0.05 |
1.05 |
0.25 |
1.7 |
|
KG-20A130-62.5 |
12 |
140 |
0.07 |
100 |
0.2 |
0.035 |
0.41 |
0.24 |
0.5 |
|
KG-20A130-100 |
18 |
100 |
0.1 |
75 |
0.18 |
0.08 |
0.62 |
0.39 |
0.5 |
|
KG-20A130-125 |
12 |
45 |
0.06 |
38 |
0.1 |
0.068 |
0.28 |
0.34 |
0.25 |
|
KG-20A130-156 |
6 |
65 |
0.1 |
50 |
0.4 |
0.09 |
0.5 |
0.44 |
1.3 |
|
KG-20A130-195 |
6 |
36 |
0.06 |
28 |
0.2 |
0.11 |
0.37 |
0.5 |
0.8 |
|
KG-20A130-312 |
4.8 |
24 |
0.15 |
16 |
0.67 |
0.39 |
0.65 |
0.75 |
1.8 |
|
KG-20A130-488 |
6 |
15 |
0.08 |
12 |
0.3 |
0.29 |
0.37 |
0.75 |
0.9 |
Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
