BL2838 BL2838I B2838M 28mm inner rotor brushless dc motor

BL2838i BL2838 B2838M 28mm inner rotor bldc brushless dc motor built-in driver Controller with hall sensor

Specifications:
Size: φ28.0* 38.0mm
Built-in driver (built-in driver Controller with hall sensor)
PWM pulse wide speed range
Clockwise/counter-clockwise rotation
FG speed feedback signal
Low EMC
Low noise
Long life: 20000hrs Min.
Over-current protection
Over-voltage protection
Under-voltage protection
OEM and ODM orders are welcome
The design can be customized
Characters:
1.Small size dc brushless motor with low speed and big torque
2.Suitable to small diameter, low noise and big torque application
3.Can equip with Gear Reducer

OD 28mm inner rotor small bldc brushless dc motor has BL2838,BL2847,BL2867 models

			BL2838		Output Power: 1W~30W			Weight: 75g (Approx)
			Brushless DC Motor-Typical Application
			Home Application: White Goods, Small Appliance, Fanner, Electric Curtain Medical Apparatus: Medical Pump, Blood Pressure Meter, Surgery Tools, Medical Stirrer, centrifugal machine Industry Equipment: Electric Valve, Portable Screwdriver, Air Pump, Water Pump, Vacuum Pump Business Equipment: Printer, Copier, Projector, Scanner, Cash Register Personal Care: Hair Dryer, Electric Shaver, Massager
Model	Voltage(V)		No Load		Rated Load				Stall
	Operating Range	Rated	Speed   (rpm)	Current  (A)	Torque   (mNm)	Speed (rpm)	Current    (A)	Output   P. (W)	Torque (mNm)	Current     (A)
BL2838i-V1	6~12	7.4	4400	0.15	7	4100	0.68	3	38	1.6
BL2838i-V2	8~26	12	3900	0.09	12	3200	0.58	4.1	69.4	1.6
BL2838i-V3	8~26	24	7640	0.15	18	4700	0.9	9	48	2.5
BL2838i-V4	8~26	24	9400	0.18	24	5800	1.38	14.6	60	2.5
BL2838i-V5	8~26	24	16000	0.3	20	13000	1.75	27.4	40	2.5

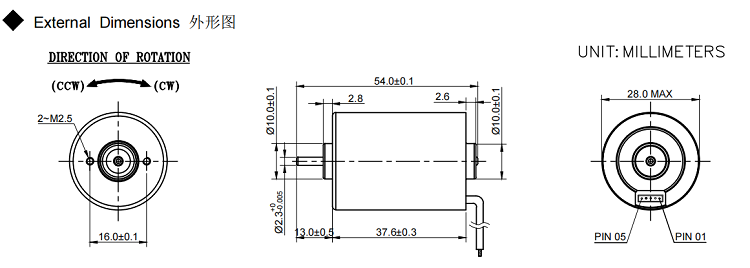

BL2838i BL2838 B2838M Motor drawing:

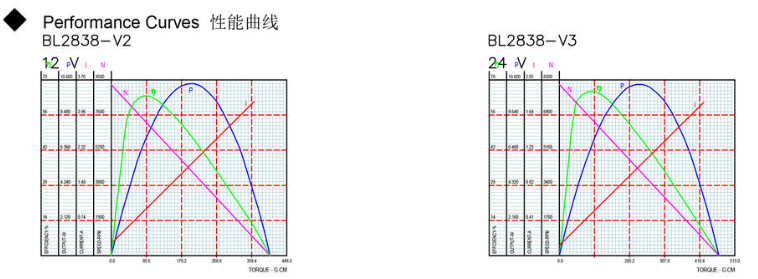

BL2838-V2                       12V BL2838-V3                        24V
