Ø 36mm Micro BLDC Brushless DC Motor

  • BL3630 bl3630I B3630M 36mm inner rotor brushless dc motor
  • BL3630 bl3630I B3630M 36mm inner rotor brushless dc motor
  • BL3630 bl3630I B3630M 36mm inner rotor brushless dc motor
  • BL3630 bl3630I B3630M 36mm inner rotor brushless dc motor
  • BL3630 bl3630I B3630M 36mm inner rotor brushless dc motor
BL3630 bl3630I B3630M 36mm inner rotor brushless dc motorBL3630 bl3630I B3630M 36mm inner rotor brushless dc motorBL3630 bl3630I B3630M 36mm inner rotor brushless dc motorBL3630 bl3630I B3630M 36mm inner rotor brushless dc motorBL3630 bl3630I B3630M 36mm inner rotor brushless dc motor

BL3630 bl3630I B3630M 36mm inner rotor brushless dc motor

  • Model: BL3630i B3630M
  • OD: 36mm Body Length: 30mm
  • Voltage: 6~26V
  • Product description:BL3630i B3630M Built-in driver, Hall sensor,Hall-effect sensor,Inbuilt controller with hall-effect sensor,Controller with hall sensor, PWM pulse, CW CCW, FG speed feedback signal,
  • Product description: BL3630 Brushless Motor, BL3630I, B3630M,BL3630 Motor, BL3630 inner rotor,36mm dc brushless motor, 36mm BLDC motor,BL3630M, Fine quality BL3630 supplier,36mm inner rotor brushless dc motor
  • INQUIRY

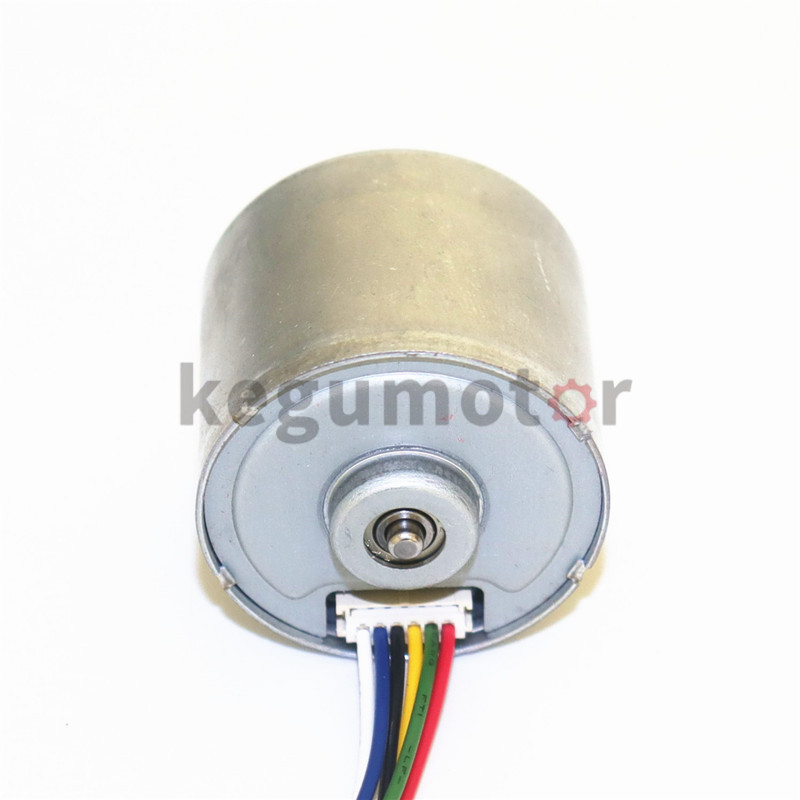

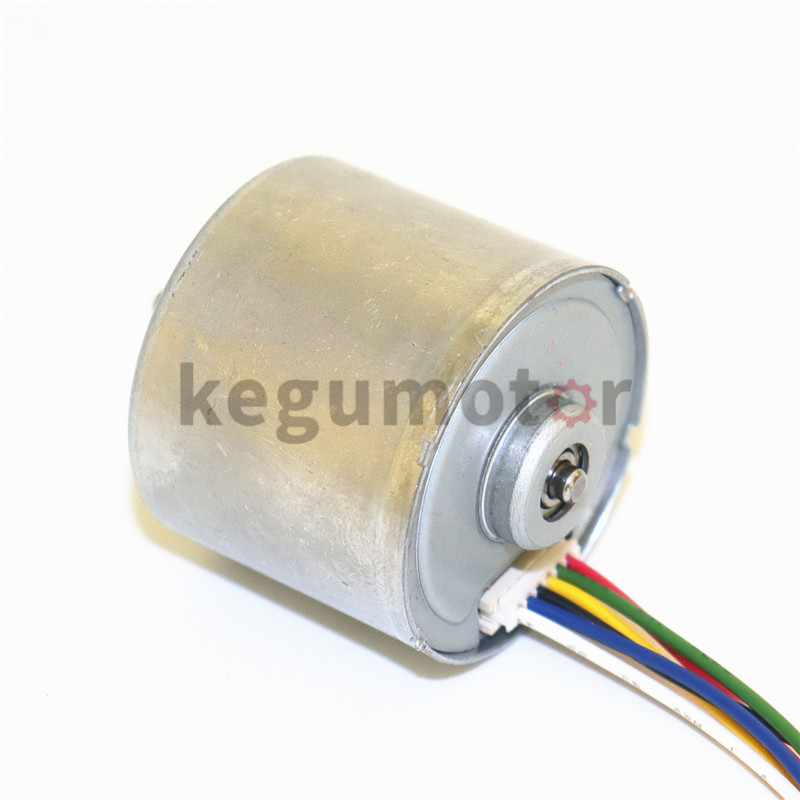

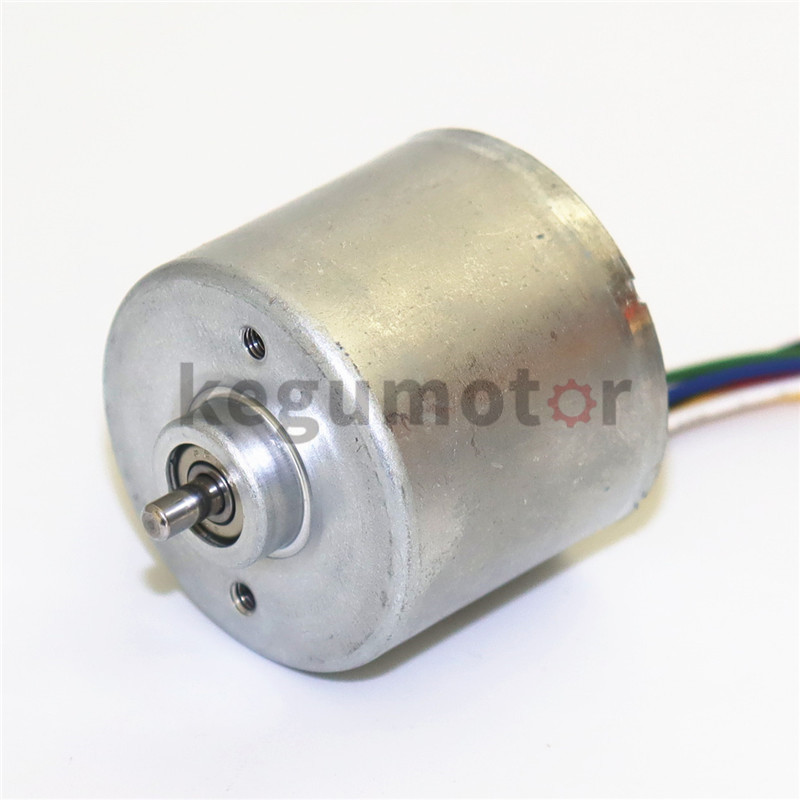

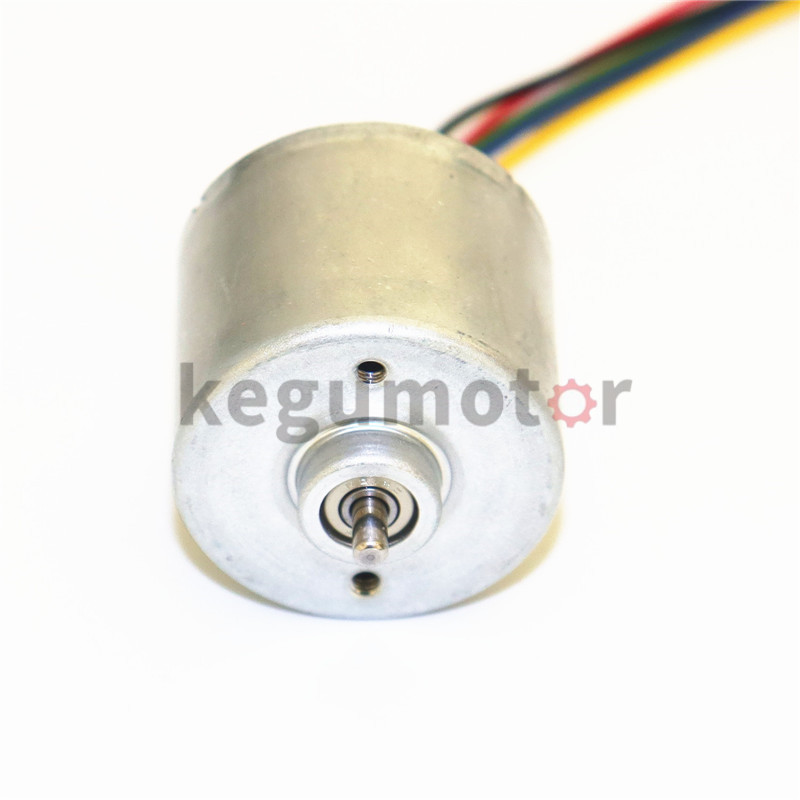

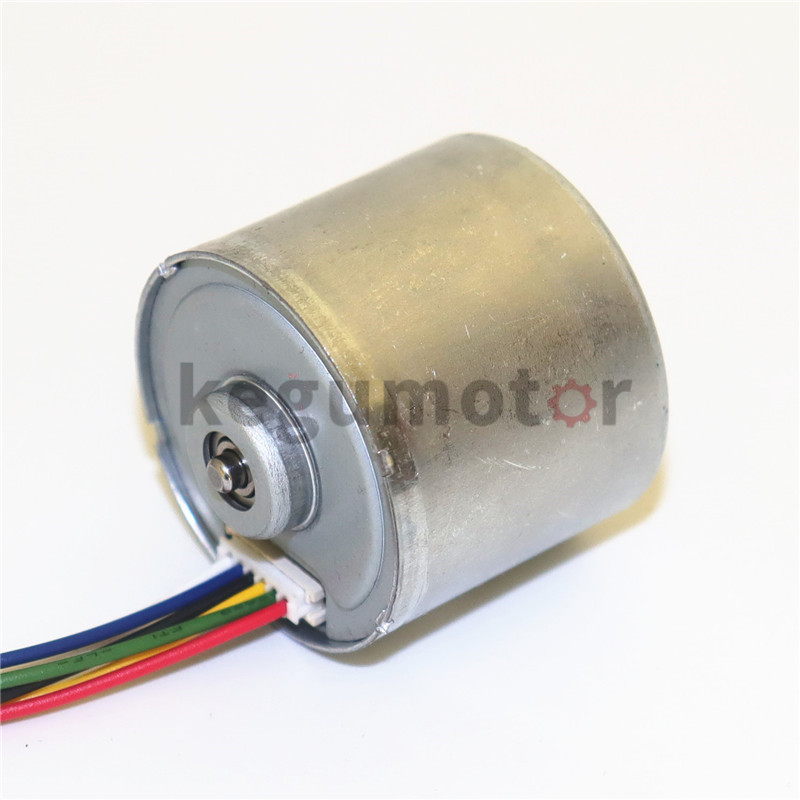

BL3630i BL3630 B3630M 36mm inner rotor Small BLDC brushless dc motor Inbuilt controller with hall-effect sensor

bl3630i b3630m 36mm bldc motor

Specifications:

Size: φ36.0* 30.0mm
Built-in driver (Inbuilt controller with hall-effect sensor)
PWM pulse wide speed range
Clockwise/counter-clockwise rotation
FG speed feedback signal
Low EMC Low noise
Long life: 20000hrs Min.
Over-current protection
Over-voltage protection
Under-voltage protection
Customization acceptable
Characters:
1.Small size dc brushless motor with low speed and big torque
2.Suitable to small diameter, low noise and big torque application

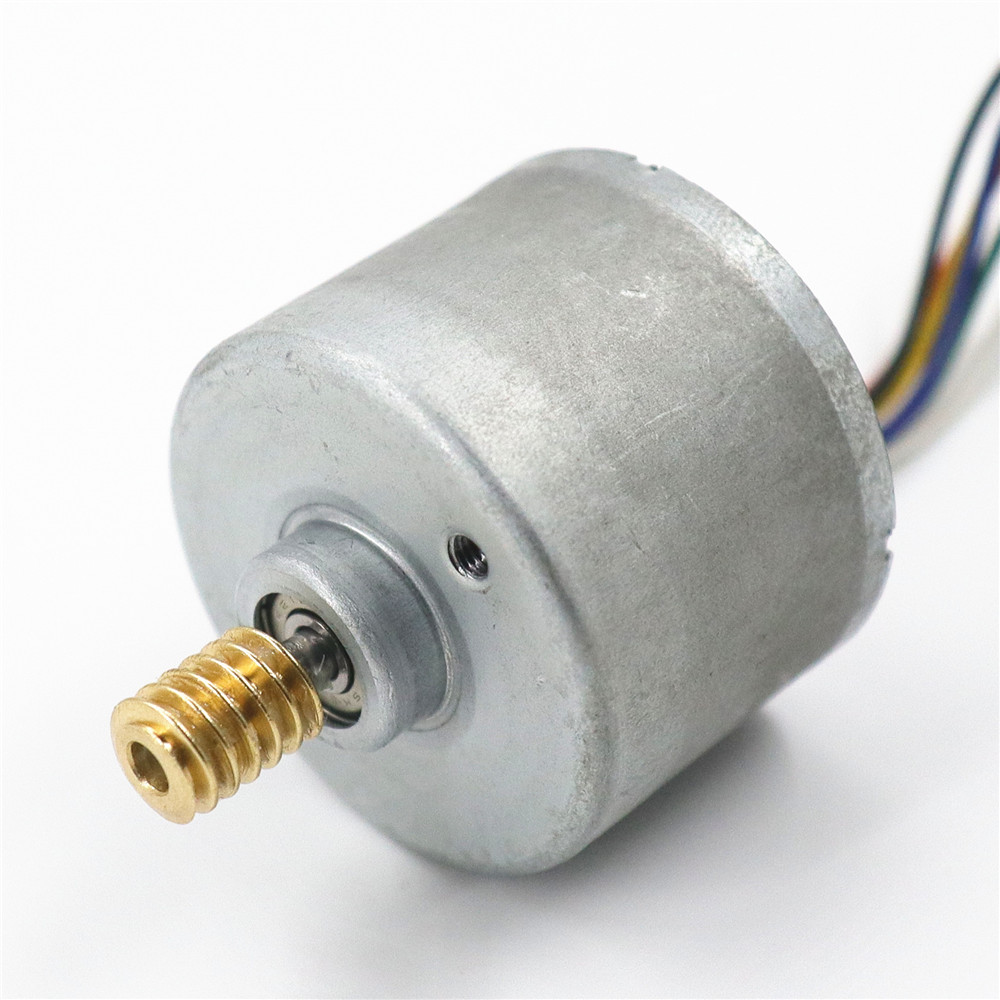

3.Can equip with Gear Reducer

OD 36mm inner rotor series BLDC brushless dc motor

BL3626i BL3630i, BL3640i, BL3650i and BL3657i high performance BLDC brushless dc motor:

BL3630i

Output Power: 2W~18W Weight: 110g (Approx.)

BL3630IBrushless DC Motor-Typical Application

Home Application: White Goods, Small Appliance, Fanner, Coffee Machine, Milk   Tea Machine

Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer, centrifugal   Machine

Industry Equipment: Pump, Portable Screwdriver, Small Compressor

Business Equipment: Printer, Copier, Projector, ATM, Vending Machine

Personal Care: Hair Dryer, Electric Shaver, Massager

Model Voltage(V) No Load Rated Load Stall
Operating Range Rated Speed (rpm) Current (A) Torque (g.cm) Speed (rpm) Current (A) Output P. (W) Torque (g.cm) Current (A)
BL3630i-V1 8~16V 12 5817 0.249 138.1 4882 0.638 6.507 657.4 3.456
BL3630i-V2 8~26V 18 7526 0.209 183 6171 0.957 11.584 1016.8 4.366
BL3630i-V3 8~26V 24 8872 0.184 191.3 7364 0.872 14.451 1125.6 4.234
Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-50000hrs

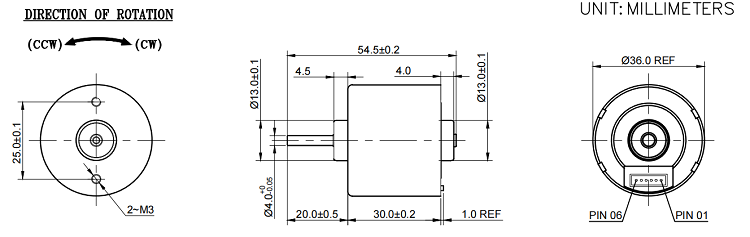

BL3630I BL3630 B3630M Drawing
bl3630i

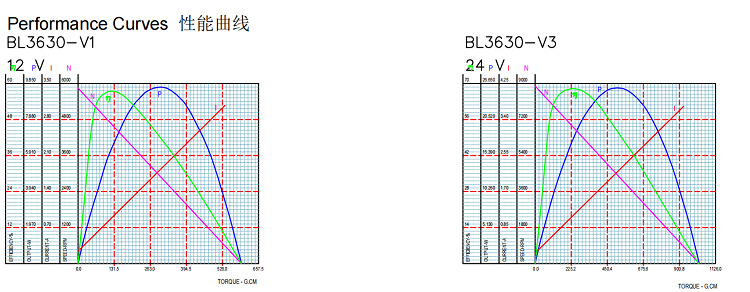

BL3630i-V1                12V                                                                                       BL3630-V3                  24V

bl3630i

Notice: Data in this typical specification sheet are for other certain customers.

Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.
