Ø 36mm Micro BLDC Brushless DC Motor

  • BL3657 BL3657I B3657M 36mm inner rotor brushless dc motor
  • BL3657 BL3657I B3657M 36mm inner rotor brushless dc motor
  • BL3657 BL3657I B3657M 36mm inner rotor brushless dc motor
  • BL3657 BL3657I B3657M 36mm inner rotor brushless dc motor
  • BL3657 BL3657I B3657M 36mm inner rotor brushless dc motor
BL3657 BL3657I B3657M 36mm inner rotor brushless dc motorBL3657 BL3657I B3657M 36mm inner rotor brushless dc motorBL3657 BL3657I B3657M 36mm inner rotor brushless dc motorBL3657 BL3657I B3657M 36mm inner rotor brushless dc motorBL3657 BL3657I B3657M 36mm inner rotor brushless dc motor

BL3657 BL3657I B3657M 36mm inner rotor brushless dc motor

  • Model: BL3657i B3657M
  • OD: 36mm Body Length: 57mm
  • Voltage: 6~26V
  • Product description:BL3657i BL3657 B3657M Built-in driver, Hall sensor,Hall-effect sensor,Inbuilt controller with hall-effect sensor,Controller with hall sensor, PWM pulse, CW CCW, FG speed feedback s
  • Product description: BL3657 Brushless Motor, BL3657I, B3657M,BL3657 Brushless Motor, BL3657 inner rotor,36mm dc brushless motor, 36mm BLDC motor,BL3657M, Fine quality BL3657 supplier,36mm inner rotor brushless dc motor
  • INQUIRY

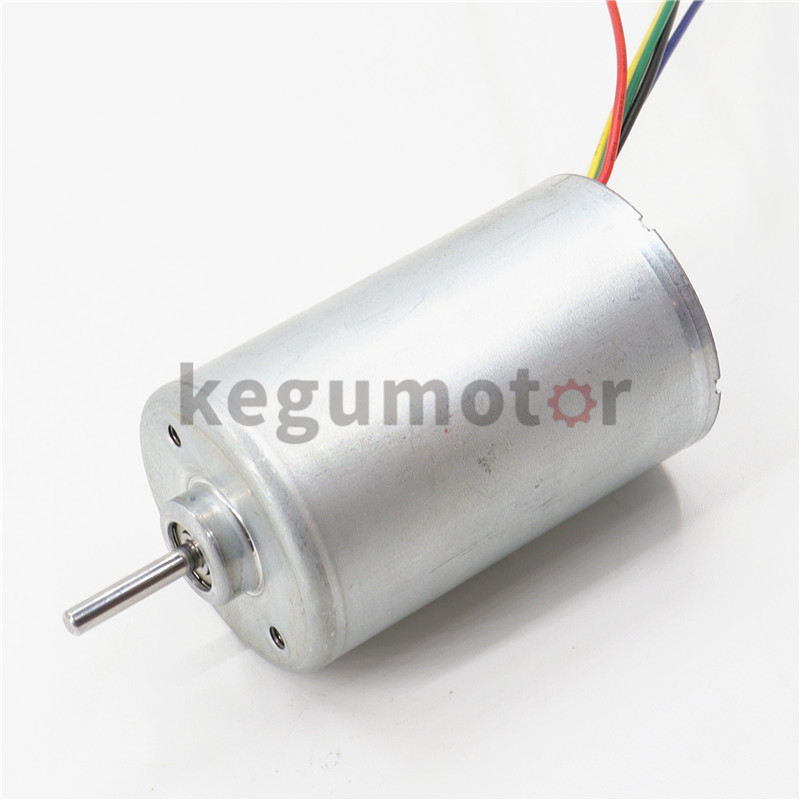

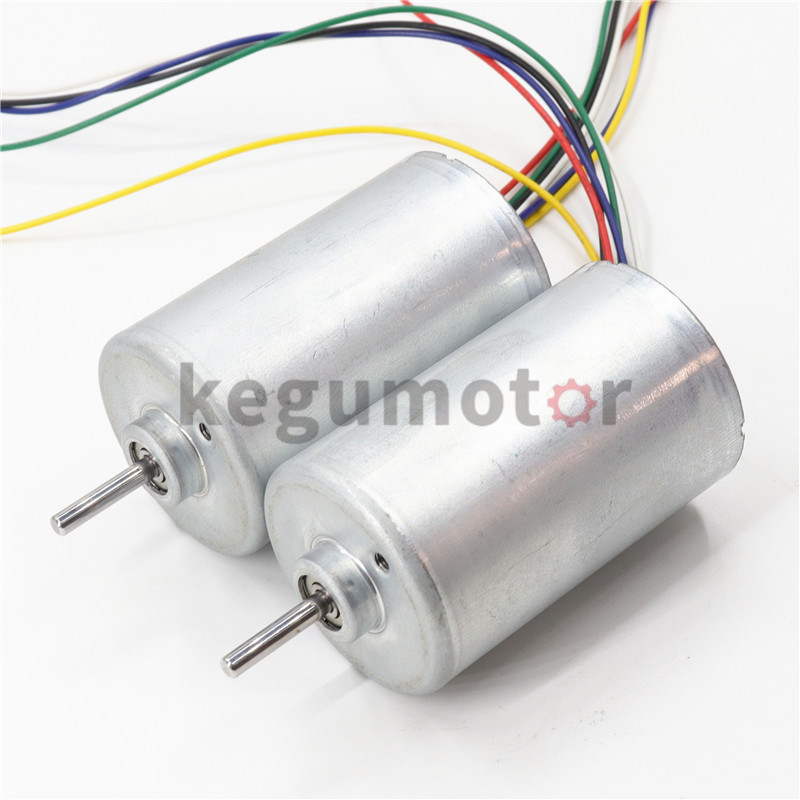

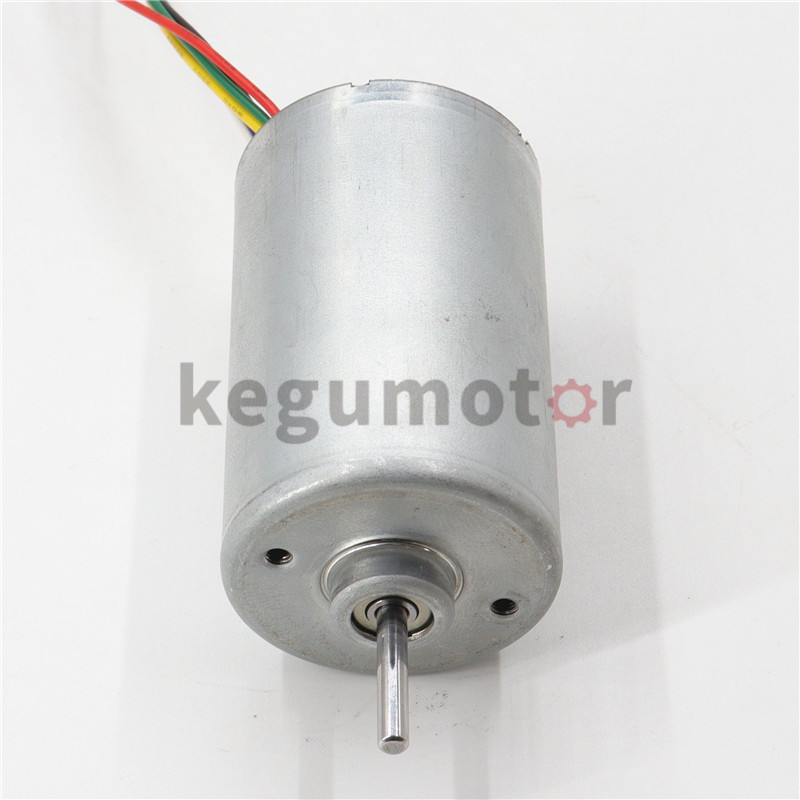

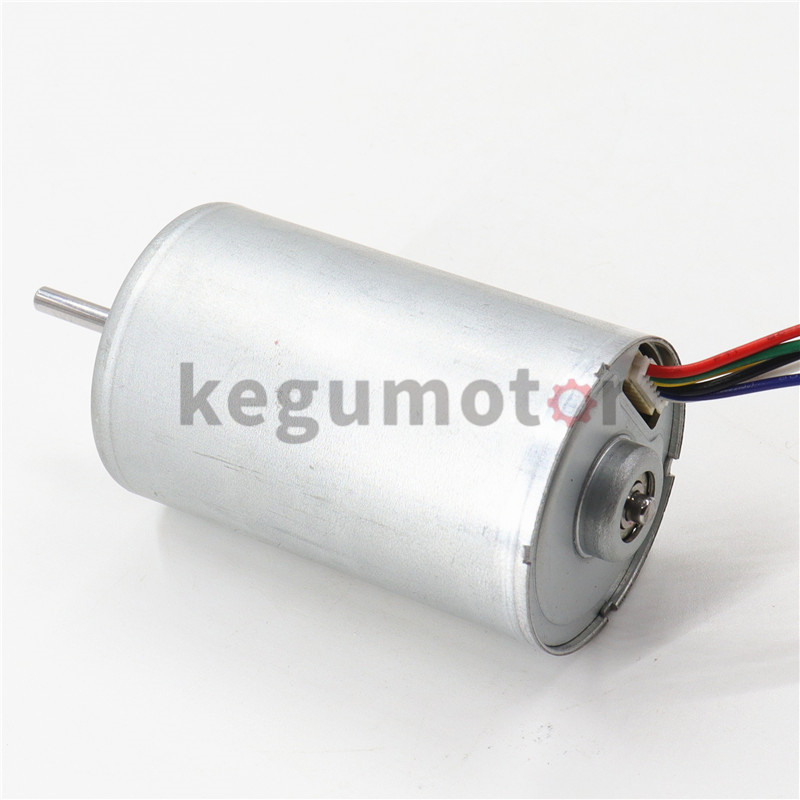

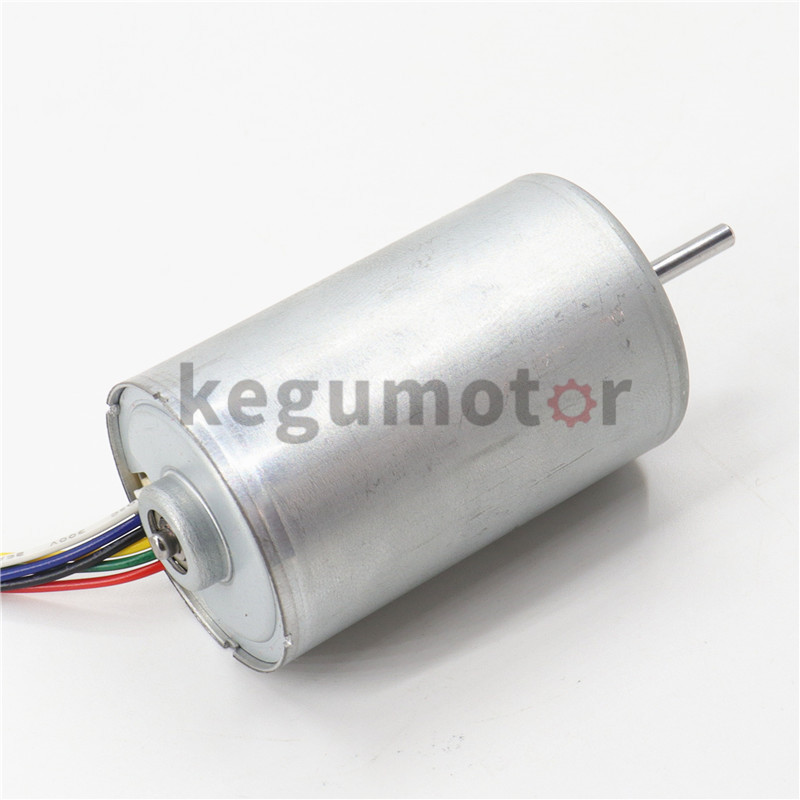

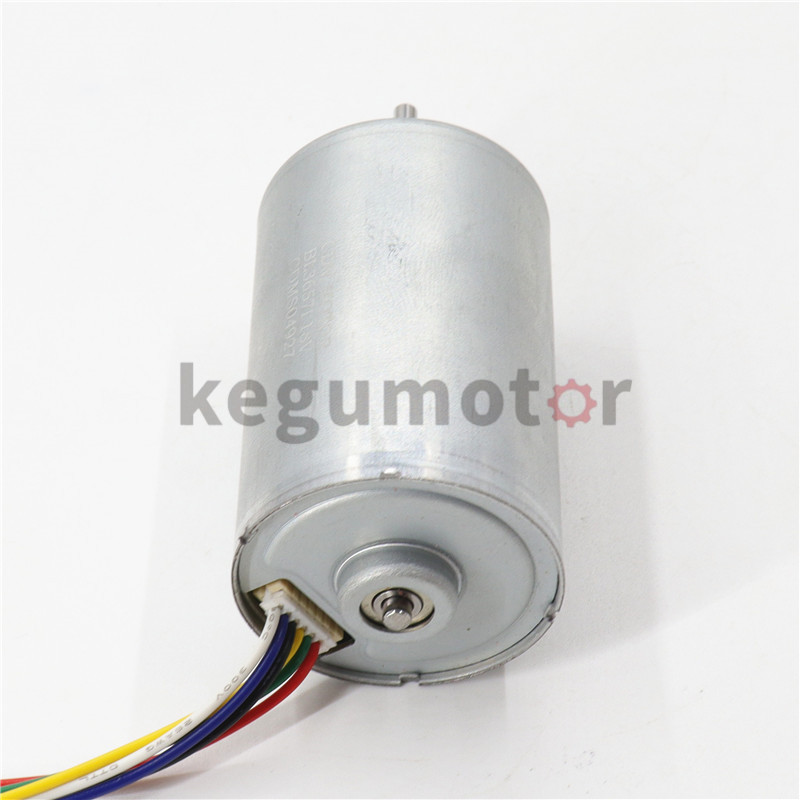

BL3657i BL3657 B3657M 36mm inner rotor Small BLDC brushless dc motor

bl3657i b3657m 36mm brushless motor

Specifications:

Size: φ36.0* 57.0mm
Built-in driver (controller with hall-effect sensor)
PWM pulse wide speed range
Clockwise/counter-clockwise rotation
FG speed feedback signal
Low EMC Low noise
Long life: 20000hrs Min.
Over-current protection
Over-voltage protection
Under-voltage protection
Customization acceptable
Characters:
1.Small size dc brushless motor with low speed and big torque
2.Suitable to small diameter, low noise and big torque application

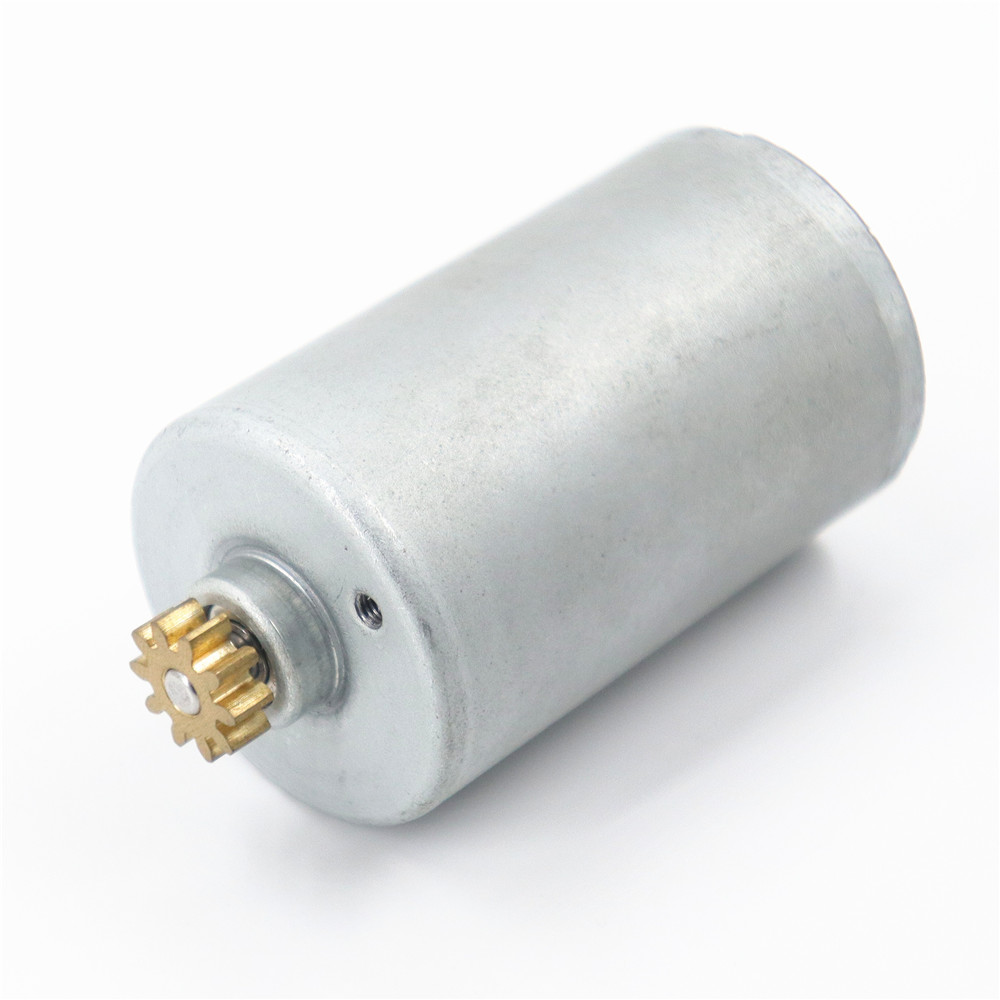

3.Can equip with Gear Reducer


OD 36mm series BLDC brushless dc motor

BL3626i,BL3630i, BL3640i, BL3650i and BL3657i high performance BLDC brushless dc motor:

Model Voltage(V) No Load Rated Load Stall
Operating Range Rated Speed (rpm) Current (A) Torque (g.cm) Speed (rpm) Current (A) Output P. (W) Torque (g.cm) Current (A)
BL3657i-S01 8~16V 12 4154 0.19 196.9 3448 0.904 6.963 1158.3 4.405
BL3657i-S02 8~26V 18 6382 0.22 267 5425 1.174 14.85 1779.7 6.604
BL3657i-S03 8~26V 24 8610 0.28 384.6 7230 1.572 28.53 2403.9 8.342

BL3657I


Output Power: 5W~50W Weight: 220g (Approx.)

bl3657iBrushless DC Motor-Typical Application

Home Application: White Goods, Small Appliance, Fanner, Coffee Machine, Milk   Tea Machine

Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer, centrifugal   Machine

Industry Equipment: Pump, Portable Screwdriver, Small Compressor

Business Equipment: Printer, Copier, Projector, ATM, Vending Machine

Personal Care: Hair Dryer, Electric Shaver, Massager

Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-50000hrs

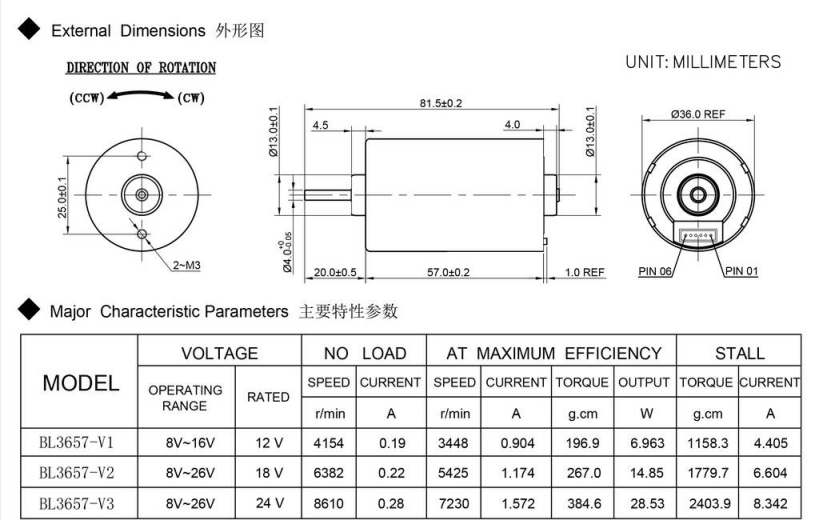

BL3657 BL3657I B3657M Drawing

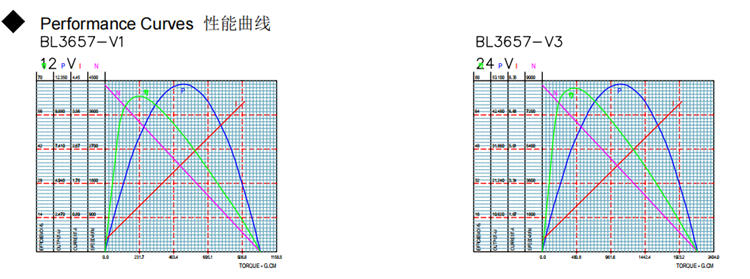

BL3657-V1                       12V BL3657-V4                        24V

Notice: Data in this typical specification sheet are for other certain customers.

Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.
