Ø 42mm Micro BLDC Brushless DC Motor

  • BL4260 BL4260I B4260M 42mm inner rotor brushless dc motor
  • BL4260 BL4260I B4260M 42mm inner rotor brushless dc motor
  • BL4260 BL4260I B4260M 42mm inner rotor brushless dc motor
  • BL4260 BL4260I B4260M 42mm inner rotor brushless dc motor
  • BL4260 BL4260I B4260M 42mm inner rotor brushless dc motor
BL4260 BL4260I B4260M 42mm inner rotor brushless dc motorBL4260 BL4260I B4260M 42mm inner rotor brushless dc motorBL4260 BL4260I B4260M 42mm inner rotor brushless dc motorBL4260 BL4260I B4260M 42mm inner rotor brushless dc motorBL4260 BL4260I B4260M 42mm inner rotor brushless dc motor

BL4260 BL4260I B4260M 42mm inner rotor brushless dc motor

  • Model: BL4260i B4260M
  • OD: 42mm Body Length: 60mm
  • Voltage: 8~26V
  • Product description:BL4260 BL4260i B4260M Built-in driver, Hall sensor,Hall-effect sensor,Inbuilt controller with hall-effect sensor,Controller with hall sensor, PWM pulse, CW CCW, FG speed feedback s
  • Product description: BL4260 Brushless Motor, BL4260I, B4260M,BL4260I Brushless Motor, BL4260 inner rotor,42mm dc brushless motor, 42mm BLDC motor,BL4260M, Fine quality BL4260 supplier,42mm inner rotor brushless dc motor
  • INQUIRY

BL4260i BL4260 B4260M OD Diameter 42mm Small inner rotor Brushless DC BLDC motor

bl4260i b4260m 42mm brushless dc motor

Specs:

Size: φ42.0* 60.0mm

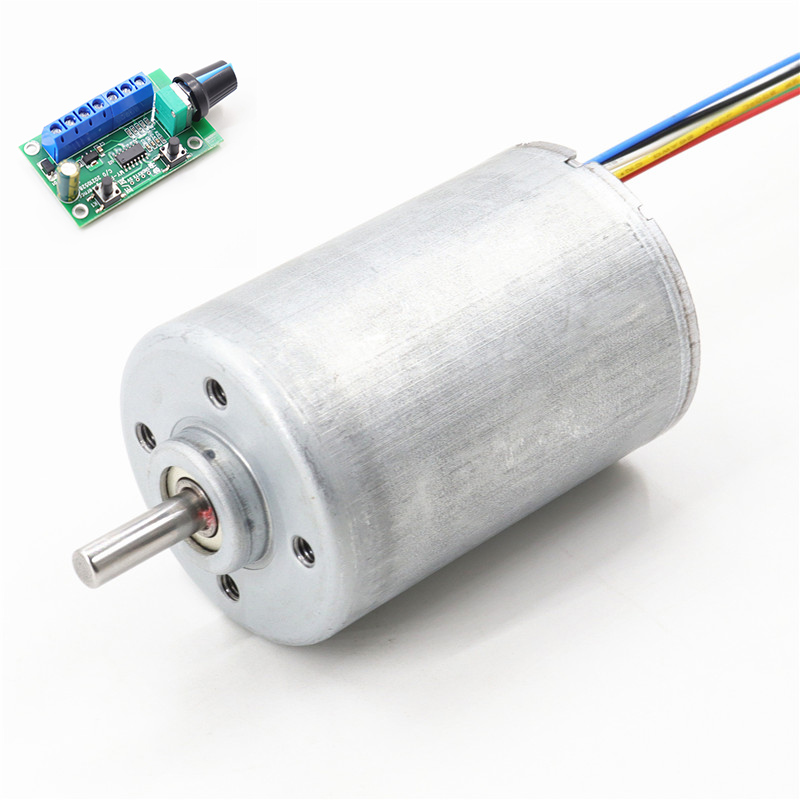

Built-in driver(built-in driver Controller with hall sensor)
PWM pulse wide speed range
Clockwise/counter-clockwise rotation
FG speed feedback signal
Low EMC
Low noise
Long life: 20000hrs Min.
Over-current protection
Over-voltage protection
Under-voltage protection
OEM and ODM orders are welcome
The design can be customized
Characters:
1.Small size dc brushless motor with low speed and big torque
2.Suitable to small diameter, low noise and big torque application
3.Can equip with Gear Reducer

42mm bldc motor with inbuilt controller series.

BL4235I,BL4260I,BL4275I high performance BLDC brushless dc motor:

BL4260


Output Power: 5W~60W Weight: 296g (Approx.)

BL4260Ibrushless dc motor-Typical Application

Home Application: White Goods, Small Appliance, Fanner, Coffee Machine, Milk   Tea Machine

Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer, centrifugal   Machine

Industry Equipment: Pump, Portable Screwdriver, Small Compressor

Business Equipment: Printer, Copier, Projector, ATM, Vending Machine

Personal Care: Hair Dryer, Electric Shaver, Massager

Model Voltage(V) No Load Rated Load Stall
Operating Range Rated Speed (rpm) Current (A) Torque (g.cm) Speed (rpm) Current (A) Output P. (W) Torque (g.cm) Current (A)
BL4260-V1 8~26 12 2050 0.16 480.5 1775 0.942 8.759 3695.2 6.18
BL4260-V2 8~26 24 4260 0.26 969.9922 3270 1.85 32.58 4175.477 3
BL4260-V3 8~26 24 4046 0.24 612.6482 3342 1.21 21.01 3516.298 2.5
Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-50000hrs


Notice: Data in this typical specification sheet are for other certain customers.

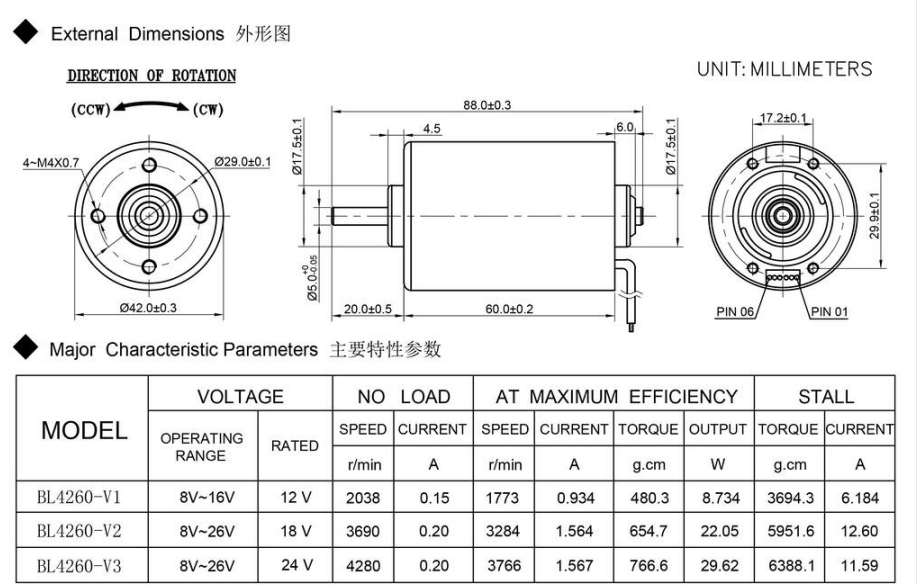

BL4260 BL4260I B4260M Data and Drawing
4260i
Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.
