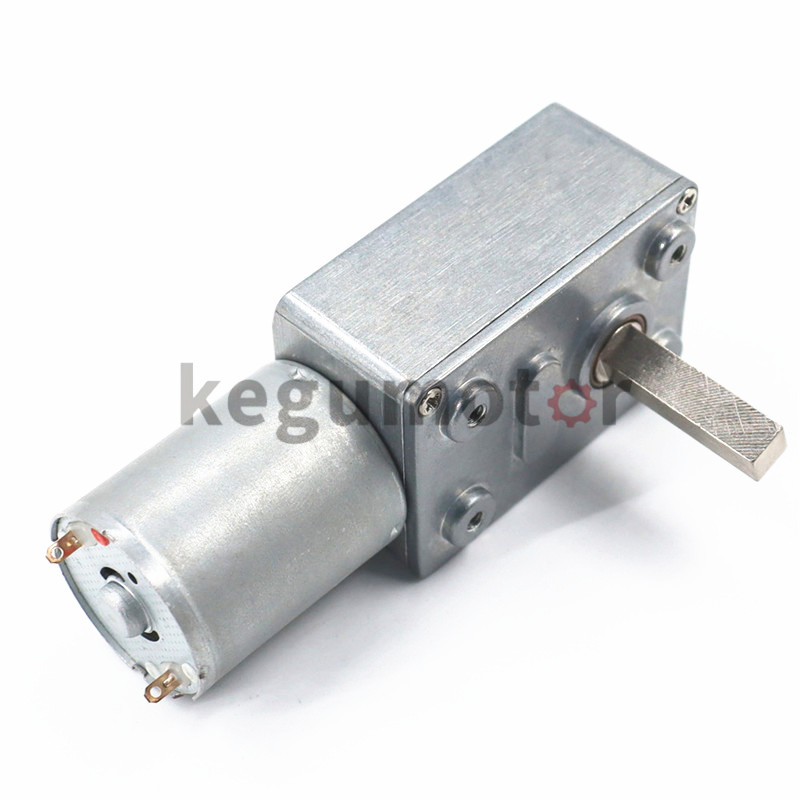

KG-4632Z370 dc worm gear motor

Model: KG-4632Z370
Gearbox: 4632 Worm Gear Box
Torque: upto 40kg.cm Motor: RF-370 Voltage: 3~24V DC
Product description：4632-370 small square worm gearbox carbon brush dc motor, find more worm gear, worm drive,worm gear motor,worm gear reducer, small worm gear motor
Product description: 4632-370 small square worm gearbox carbon brush dc motor, dc worm gear motor, worm gear drive,worm gear motor,worm gear reducer, small worm gear motor,worm gearbox, micro worm gearbox,32mm worm gear m
INQUIRY

4632-370 small square worm gearbox carbon brush dc motor

32mm worm gear motor

This worm gear motor is assembled by a RF-370 carbon brushed dc motor with a worm gear(worm gearbox reducer)

Model:KG-4632Z370
Diameter:Motor 25mm
Length:46+30.8mm
Characters:
1.Small size dc gear motor with low speed and big torque
2.32*46mm gear motor provide 1.0Nm torque and more reliable
3.Suitable to small diameter, low noise and big torque application
4.Dc Gear motors can match encoder,11ppr
5.Reduction Ratio: 45.8、 56.6、58.5、72、76.5、95、103、114.6、160、177、224、288、384、615、1220、1568、1650、2592

Worm gear reducer data:

Number of stages	3	5
Gear ratio	45.8	615
	56.6	772.5
	58.5	1220
	72	1568
	76.5	1584
	95	1650
	103	2016
	114.6	2592
	160
	177
	224
	288
	384
Length of gearbox L(mm）	42

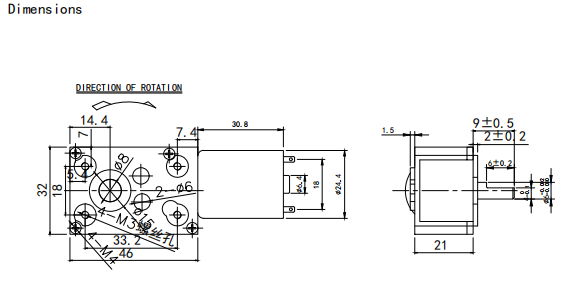

Drawing of 4632-370 worm gear motor

KG-4632Z370 small square worm gearbox carbon brush dc motor specs:

MODEL	Rated Voltage V	NO LOAD		RATED LOAD				STALL
MODEL	Rated Voltage V	SPEED rpm	CURRENT A	SPEED rpm	CURRENT A	TORQUE Nm	OUTPUT W	TORQUE Nm	CURRENT A
KG-4632Z370-45.8	12	272	0.1	237	0.3	0.14	3.52	1.17	1.9
KG-4632Z370-76.5	12	156	0.1	136	0.3	0.24	3.48	1.96	1.9
KG-4632Z370-95	12	126	0.1	109	0.3	0.29	3.35	2.45	1.9
KG-4632Z370-144	12	83	0.1	72	0.3	0.46	3.47	3.5	1.9
KG-4632Z370-224	6	26.5	0.1	23	0.3	0.37	0.89	2.94	1.9
KG-4632Z370-288	6	20.5	0.1	18	0.3	0.49	0.92	3.8	1.9
KG-4632Z370-384	6	15.5	0.1	13.5	0.3	0.63	0.9	4.9	1.9
KG-4632Z370-615	12	5.8	0.04	4.9	0.07	0.68	0.35	4.6	0.4
KG-4632Z370-1220	24	3	0.02	2.7	0.04	1.25	0.35	5	0.25
KG-4632Z370-1568	12	2.2	0.04	1.9	0.07	1.76	0.35	5	0.4
KG-4632Z370-1650	3	1.6	0.07	1.2	0.09	0.49	0.06	3.43	0.35
KG-4632Z370-2592	3	1	0.07	0.75	0.09	0.83	0.06	5	0.35
