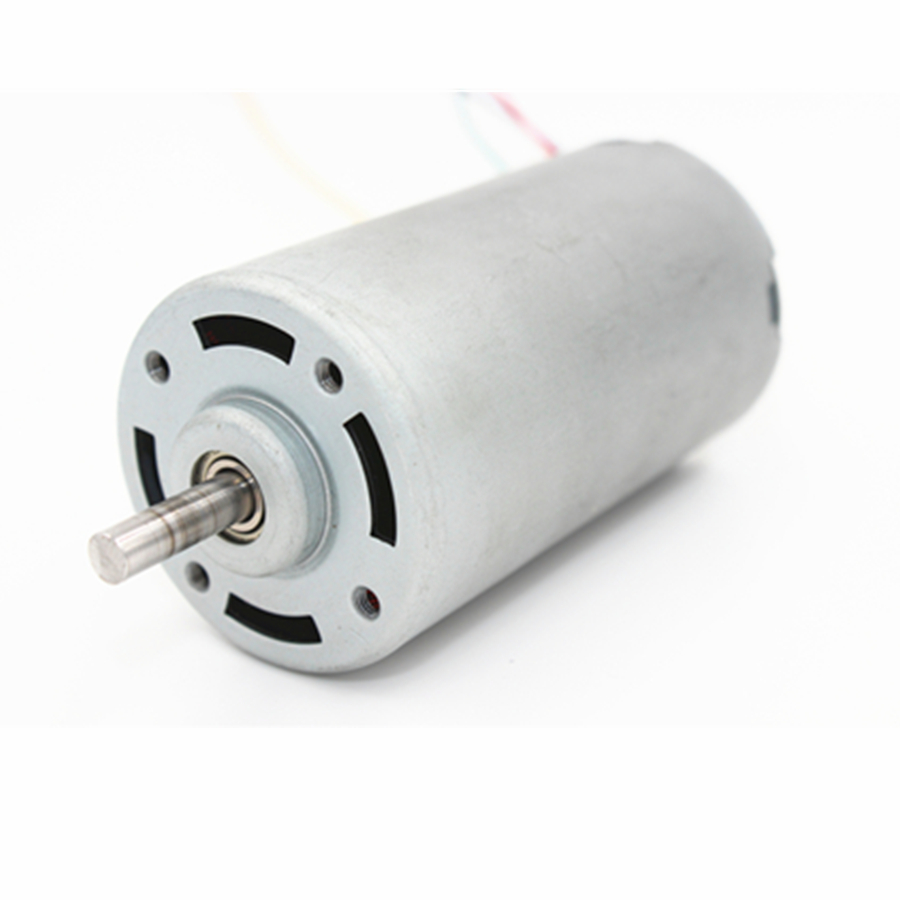

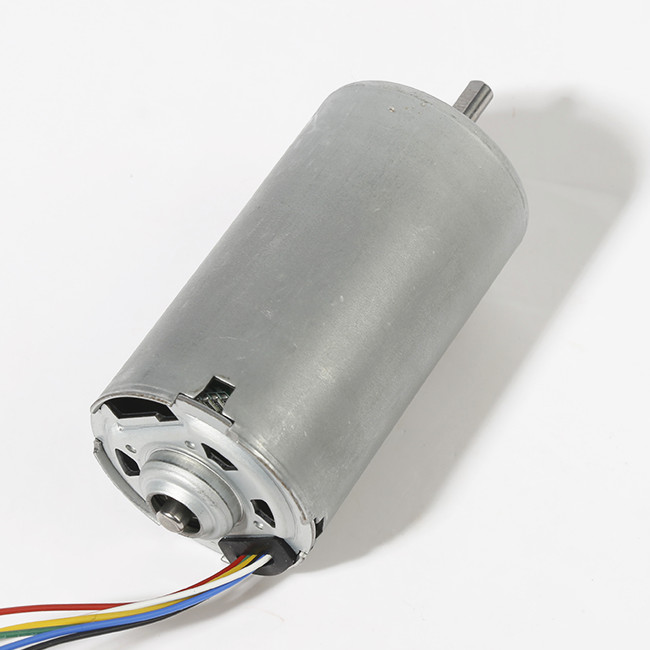

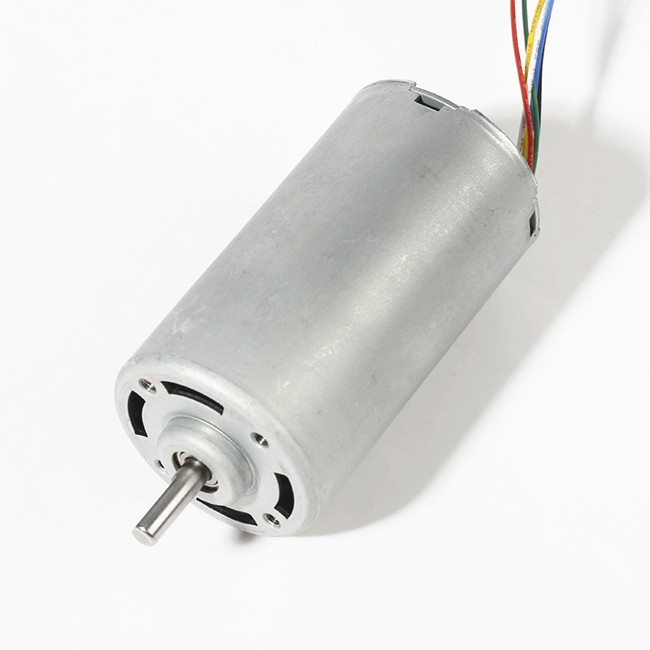

Ø 42mm Micro BLDC Brushless DC Motor

  • BL4275 BL4275i B4275M 42mm inner rotor brushless dc motor
  • BL4275 BL4275i B4275M 42mm inner rotor brushless dc motor
  • BL4275 BL4275i B4275M 42mm inner rotor brushless dc motor
BL4275 BL4275i B4275M 42mm inner rotor brushless dc motorBL4275 BL4275i B4275M 42mm inner rotor brushless dc motorBL4275 BL4275i B4275M 42mm inner rotor brushless dc motor

BL4275 BL4275i B4275M 42mm inner rotor brushless dc motor

  • Model: BL4275 BL4275i B4275M
  • OD: 42mm Body Length:75mm
  • Voltage: 6~26V
  • Product description:BL4275i B4275M Built-in driver, Hall sensor,Hall-effect sensor,Inbuilt controller with hall-effect sensor,Controller with hall sensor, PWM pulse, CW CCW, FG speed feedback signal,
  • Product description: BL4275 Brushless Motor|Kegu Motor, BL4275i, B4275M,BL4275 Motor, BL4275 inner rotor,42mm BLDC Motor,Inbuilt controller with hall-effect sensor,Controller with hall sensor,micro brushless dc motor,bld
  • INQUIRY

BL4275I BL4275 B4275M 24mm inner rotor bldc brushless dc motor

Size: Ø42.0* 75.0mm
Built-in driver(built-in driver Controller with hall sensor)
PWM pulse wide speed range
Clockwise/counter-clockwise rotation
FG speed feedback signal
Low EMC
Low noise
Long life: 20000hrs Min.
Over-current protection
Over-voltage protection
Under-voltage protection
OEM and ODM orders are welcome
The design can be customized
Characters:
1.Small size dc brushless motor with low speed and big torque
2.Suitable to small diameter, low noise and big torque application

3.Can equip with Gear Reducer

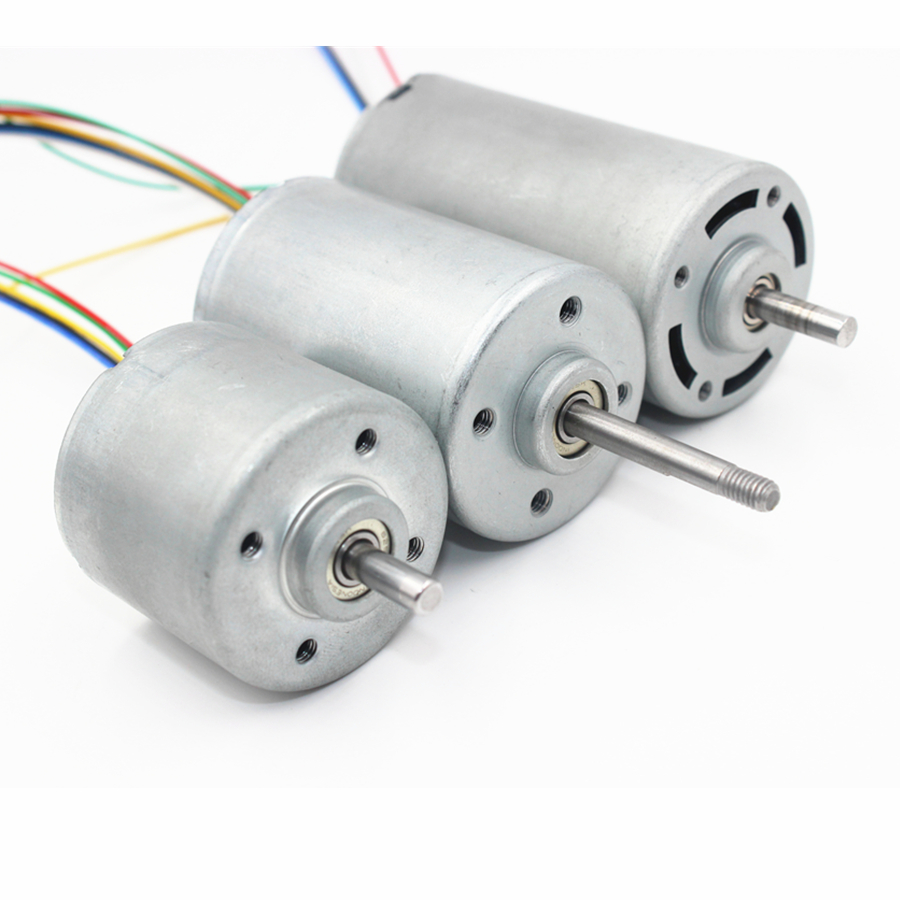

42mm bldc motor with inbuilt controller series.

BL4235I,BL4260I,BL4275I high performance BLDC brushless dc motor:


BL4275


Output Power: 5W~90W Weight: 330g (Approx.)

bl4275ibrushless dc motor-Typical Application

Home Application: White Goods, Small Appliance, Fanner, Coffee Machine, Milk   Tea Machine

Medical Apparatus: Medical Pump, Surgery Tools, Medical                                                             Stirrer, centrifugal   Machine

Industry Equipment: Pump, Portable Screwdriver, Small Compressor

Business Equipment: Printer, Copier, Projector, ATM, Vending Machine

Personal Care: Hair Dryer, Electric Shaver, Massager

Model Voltage(V) No Load Rated Load Stall
Operating Range Rated Speed (rpm) Current (A) Torque (g.cm) Speed (rpm) Current (A) Output P. (W) Torque (g.cm) Current (A)
BL4275-V1 8~26 12 2511 0.43 1101.012 1310 2.38 14.8 2265.288 5
BL4275-V2 8~26 12 2813 0.34 867.34 2292 2.29 20.4 4673.432 5
BL4275-V3 8~26 18 3790 0.32 857.3401 2930 2 25.8 3755.072 5
BL4275-V4 8~26 24 5050 0.42 1108.154 3900 2.62 44.3 3877.52 5

Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-50000hrs

Notice: Data in this typical specification sheet are for other certain customers.


BL7275i BL4275 B4275M drawing


Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.
