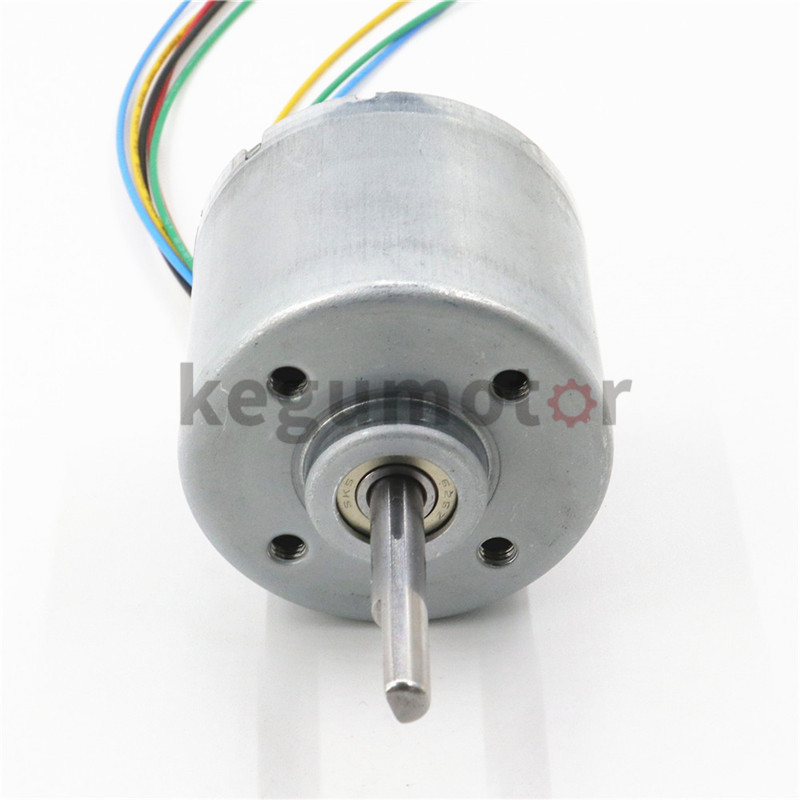

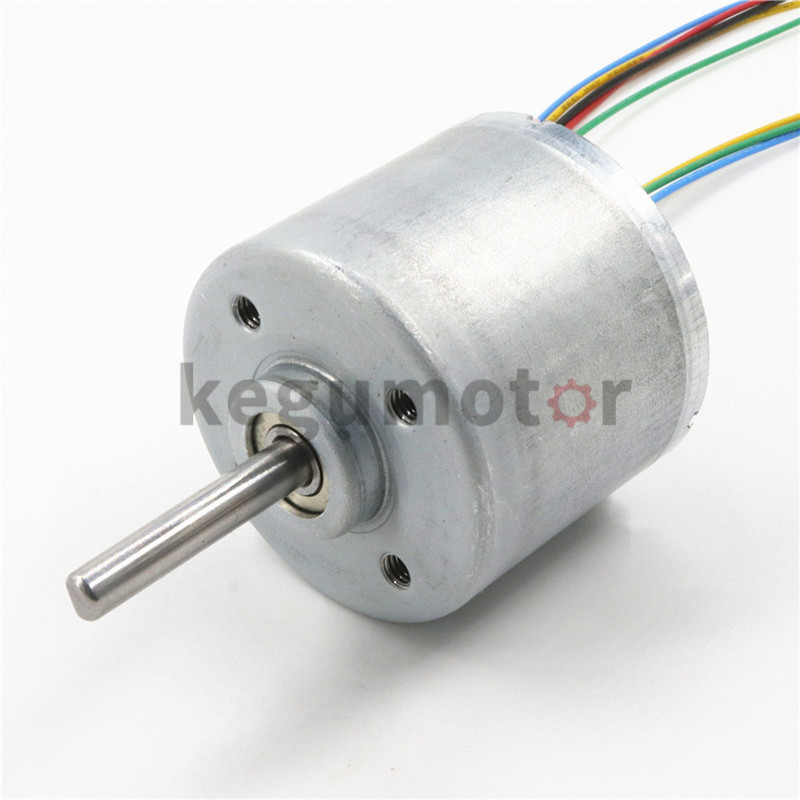

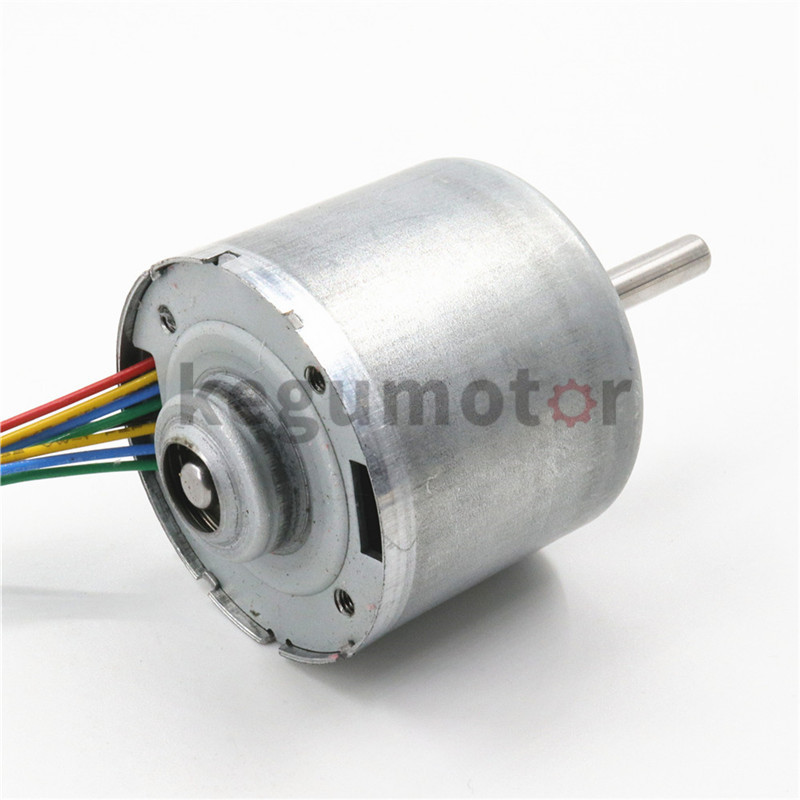

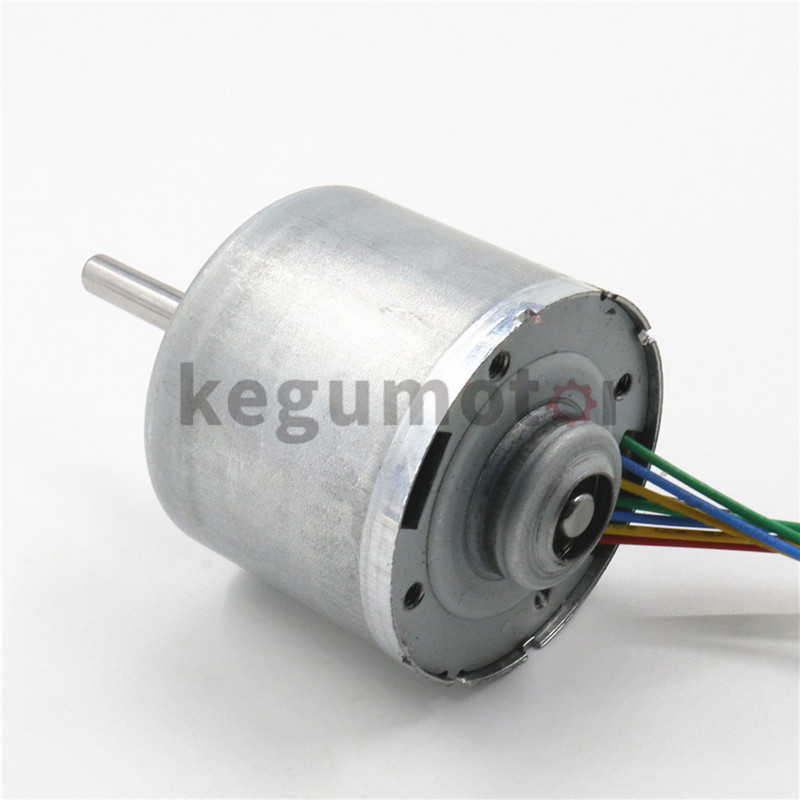

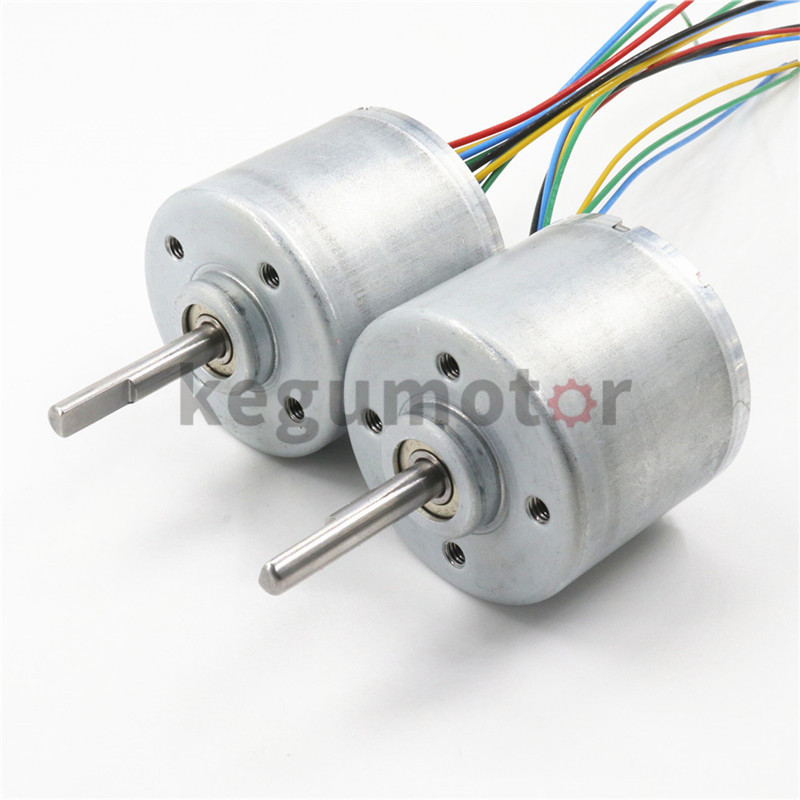

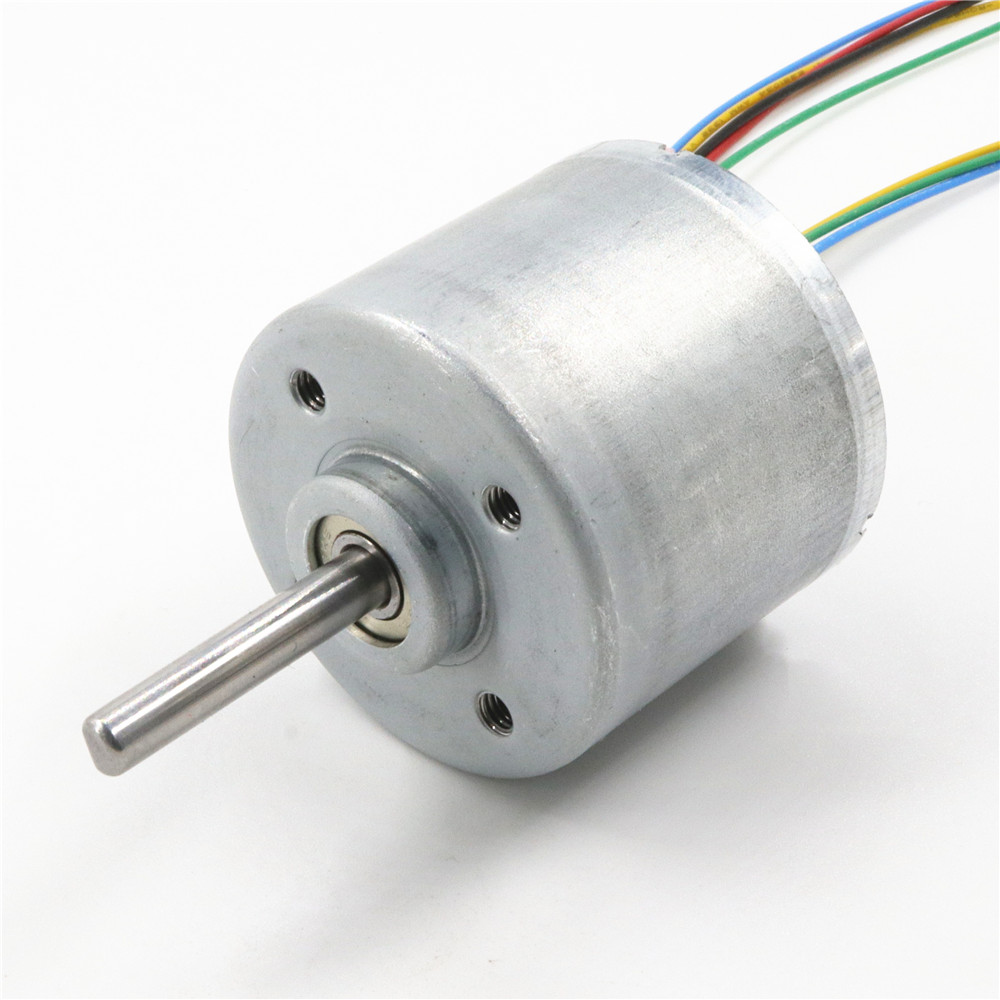

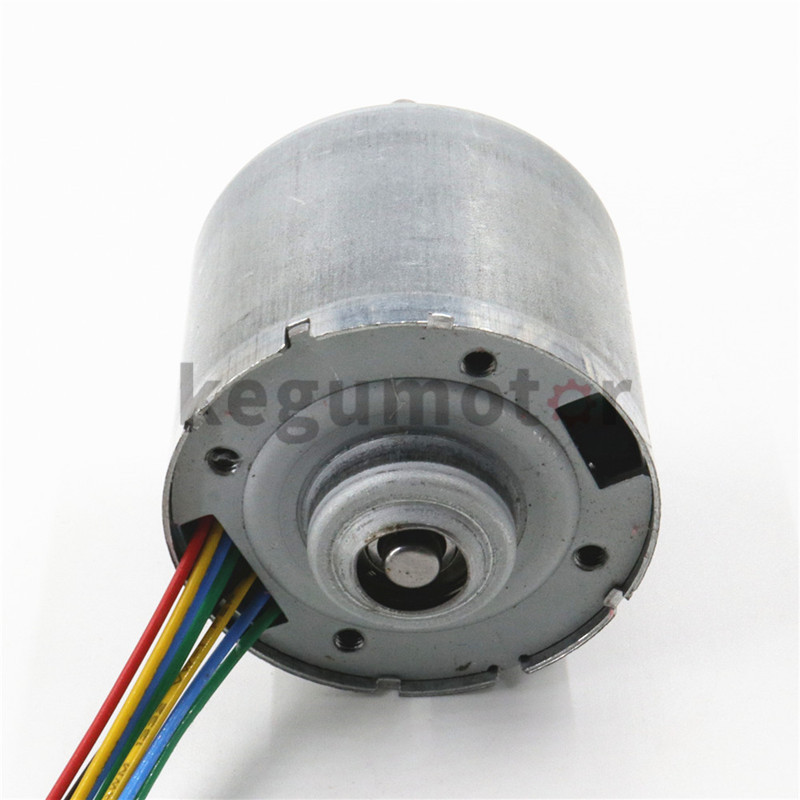

Ø 42mm Micro BLDC Brushless DC Motor

  • BL4235 BL4235i B4235M 42mm inner rotor brushless dc motor
  • BL4235 BL4235i B4235M 42mm inner rotor brushless dc motor
  • BL4235 BL4235i B4235M 42mm inner rotor brushless dc motor
  • BL4235 BL4235i B4235M 42mm inner rotor brushless dc motor
  • BL4235 BL4235i B4235M 42mm inner rotor brushless dc motor
BL4235 BL4235i B4235M 42mm inner rotor brushless dc motorBL4235 BL4235i B4235M 42mm inner rotor brushless dc motorBL4235 BL4235i B4235M 42mm inner rotor brushless dc motorBL4235 BL4235i B4235M 42mm inner rotor brushless dc motorBL4235 BL4235i B4235M 42mm inner rotor brushless dc motor

BL4235 BL4235i B4235M 42mm inner rotor brushless dc motor

  • Model: BL4235 BL4235i B4235M
  • OD: 42mm Body Length:35mm
  • Voltage: 6~26V
  • Product description:BL4235i B4235M Built-in driver, Hall sensor,Hall-effect sensor,Inbuilt controller with hall-effect sensor,Controller with hall sensor, PWM pulse, CW CCW, FG speed feedback signal,
  • Product description: BL4235 Brushless Motor|Kegu Motor, BL4235i, B4235M,BL4235 Motor, BL4235 inner rotor,42mm BLDC Motor,Controller with hall sensor,micro brushless dc motor,bldc, Fine quality BL4235 supplier,42mm inner
  • INQUIRY

BL4235I BL4235 B4235M 42mm inner rotor bldc brushless dc motor

bl4235i b4235m 42mm brushless motor

Size: Ø42.0* 35.0mm

Built-in driver(built-in driver Controller with hall sensor)
PWM pulse wide speed range
Clockwise/counter-clockwise rotation
FG speed feedback signal
Low EMC
Low noise
Long life: 20000hrs Min.
Over-current protection
Over-voltage protection
Under-voltage protection
OEM and ODM orders are welcome
The design can be customized
Characters:
1.Small size dc brushless motor with low speed and big torque
2.Suitable to small diameter, low noise and big torque application

3.Can equip with Gear Reducer

42mm bldc motor with inbuilt controller series.

BL4235I,BL4260I,BL4275I high performance BLDC brushless dc motor:


BL4235

Output Power: 5W~30W

Weight: 160g(Approx.)

BL4235Ibrushless dc motor-Typical Application

Home Application: White Goods, Small Appliance, Fanner, Coffee Machine, Milk   Tea Machine

Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer, centrifugal   Machine

Industry Equipment: Pump, Portable Screwdriver, Small Compressor

Business Equipment: Printer, Copier, Projector, ATM, Vending Machine

Personal Care: Hair Dryer, Electric Shaver, Massager

Model Voltage(V) No Load Rated Load Stall
Operating Range Rated Speed (rpm) Current (A) Torque (g.cm) Speed (rpm) Current (A) Output P. (W) Torque (g.cm) Current (A)
BL4235-V1 8~26 12 2860 0.21 410.2008 2050 1.16 8.62 1438.764 2.5
BL4235-V2 8~26 24 6370 0.3 357.14 5100 1.17 18.72 1793.863 2.5
BL4235-V3 8~26 24 9400 0.53 184.1822 8530 1.16 16.12 1988.76 2.5
BL4235-V4 8~26 24 5539 0.25 561.5261 4393 1.41 25.31 2696.917 2.5
BL4235-V5 8~26 24 8455 0.33 408.16 7580 1.64 31.75 3946.907 2.5

Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-50000hrs

Notice: Data in this typical specification sheet are for other certain customers.

BL4235i BL4235 B4235M drawing


Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.
