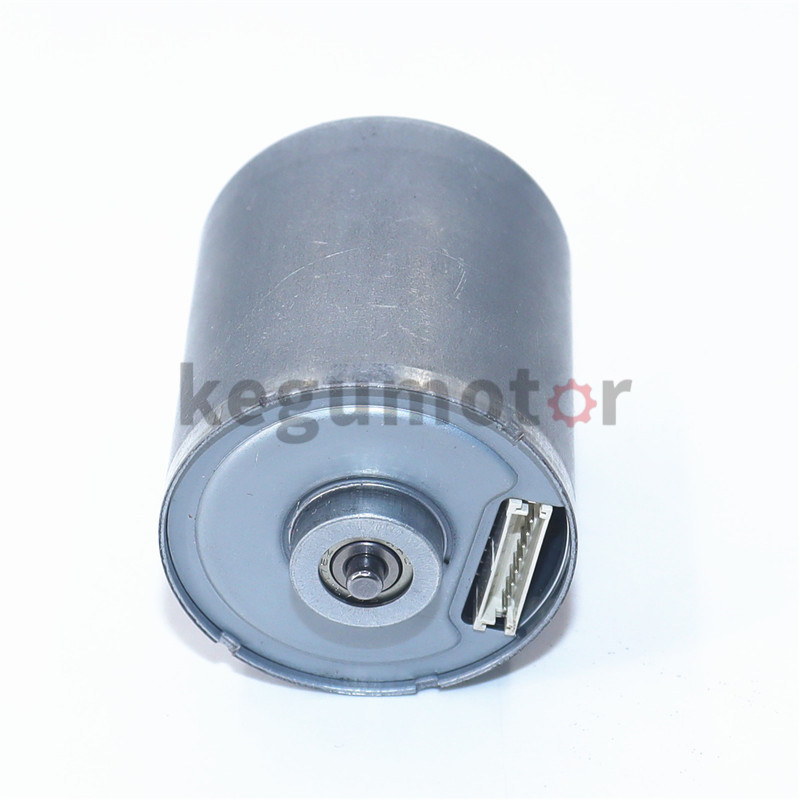

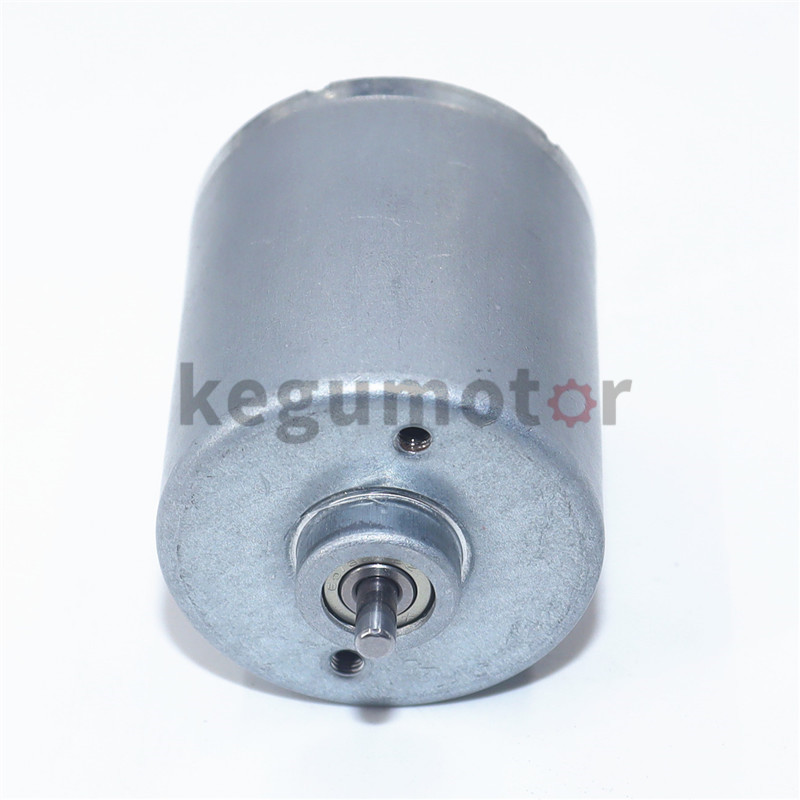

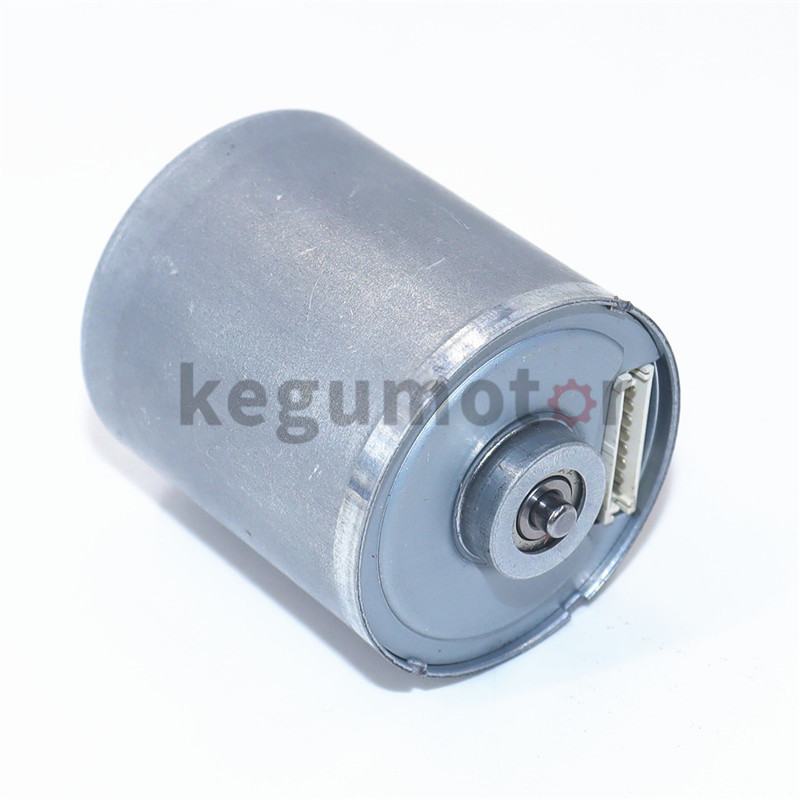

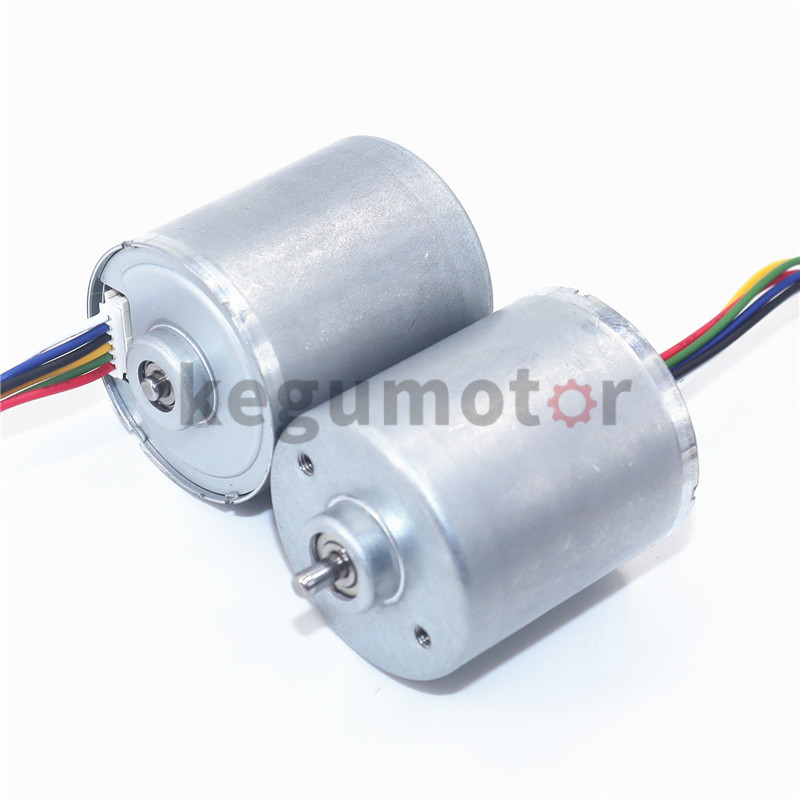

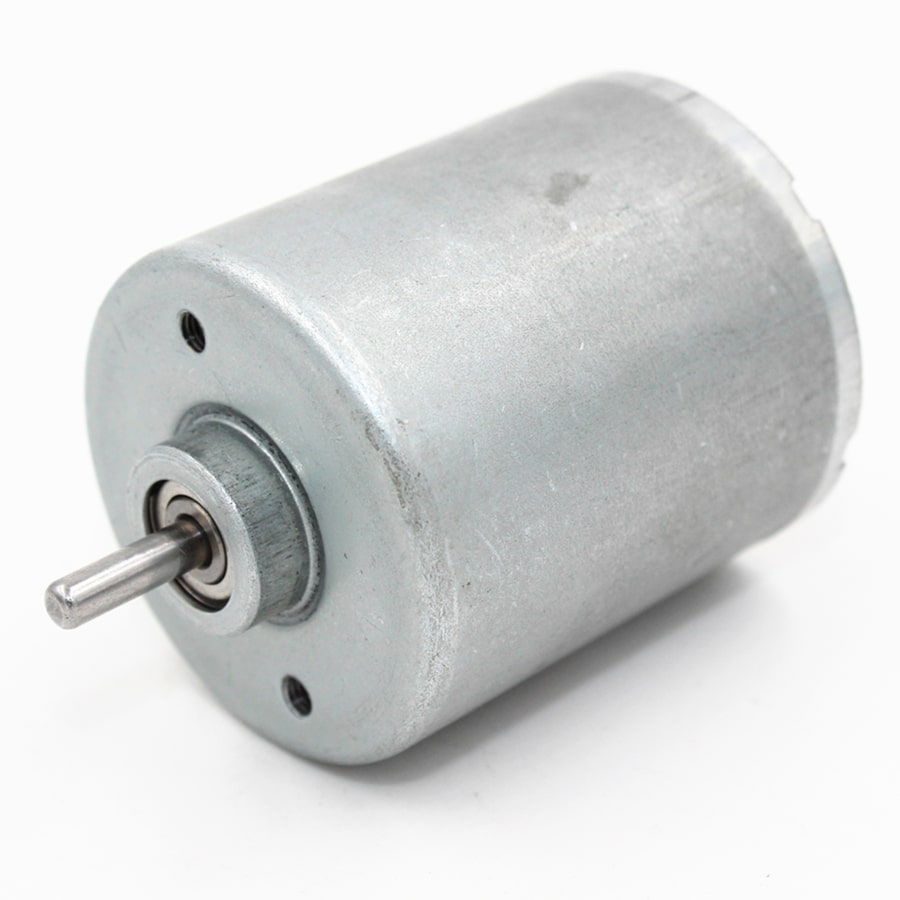

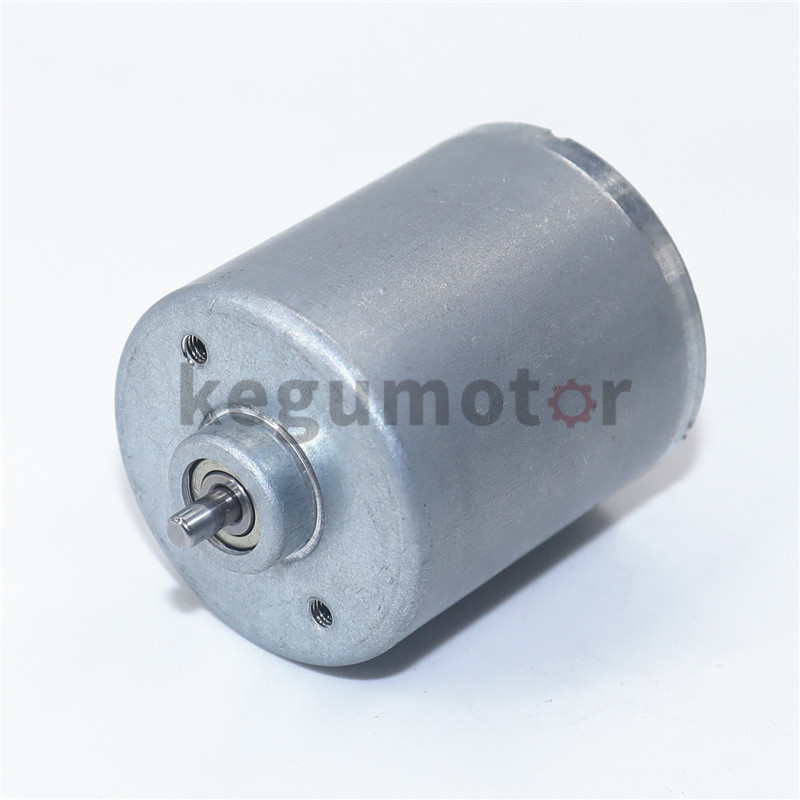

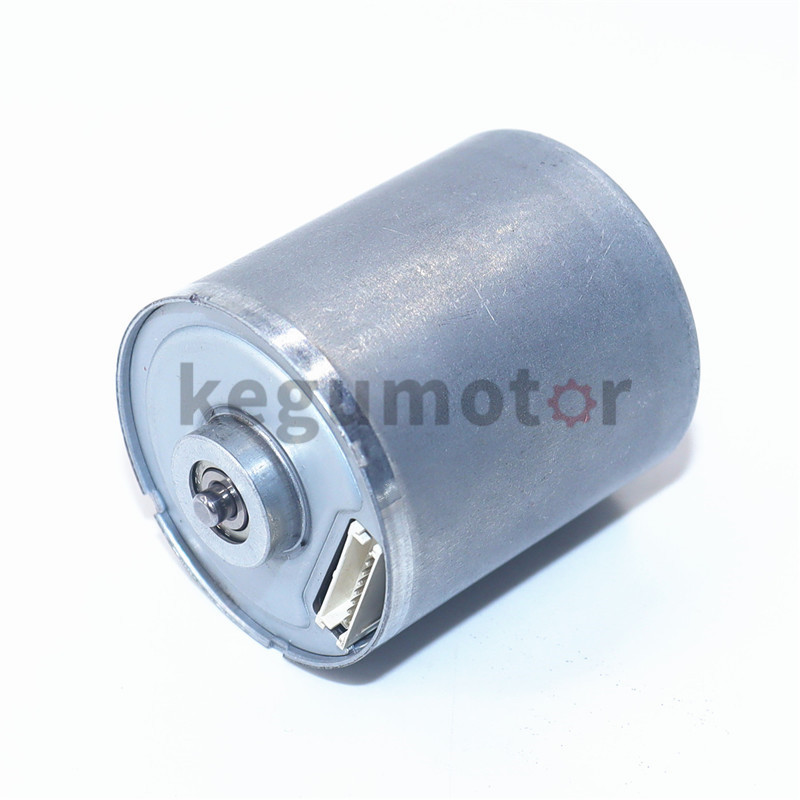

Ø 36mm Micro BLDC Brushless DC Motor

  • BL3640 BL3640I B3640M 36mm inner rotor brushless dc motor
  • BL3640 BL3640I B3640M 36mm inner rotor brushless dc motor
  • BL3640 BL3640I B3640M 36mm inner rotor brushless dc motor
  • BL3640 BL3640I B3640M 36mm inner rotor brushless dc motor
  • BL3640 BL3640I B3640M 36mm inner rotor brushless dc motor
BL3640 BL3640I B3640M 36mm inner rotor brushless dc motorBL3640 BL3640I B3640M 36mm inner rotor brushless dc motorBL3640 BL3640I B3640M 36mm inner rotor brushless dc motorBL3640 BL3640I B3640M 36mm inner rotor brushless dc motorBL3640 BL3640I B3640M 36mm inner rotor brushless dc motor

BL3640 BL3640I B3640M 36mm inner rotor brushless dc motor

  • Model: BL3640i B3640M
  • OD: 36mm Body Length: 40mm
  • Voltage: 6~26V
  • Product description:BL3640i B3640M Built-in driver, Hall sensor,Hall-effect sensor,Inbuilt controller with hall-effect sensor,Controller with hall sensor, PWM pulse, CW CCW, FG speed feedback signal,
  • Product description: BL3640 Brushless Motor, BL3640I, B3640M,BL3640 Motor, BL3640 inner rotor,36mm dc brushless motor, 36mm BLDC motor,BL3640M, Fine quality BL3640 supplier,36mm inner rotor brushless dc motor
  • INQUIRY

BL3640i BL3640 B3640M 36mm inner rotor Small BLDC brushless dc motor

bl3640i b3640m 36mm brushless motor

Specifications:

Size: φ36.0* 40.0mm
Built-in driver (Inbuilt controller with hall-effect sensor)
PWM pulse wide speed range
Clockwise/counter-clockwise rotation
FG speed feedback signal
Low EMC Low noise
Long life: 20000hrs Min.
Over-current protection
Over-voltage protection
Under-voltage protection
Customization acceptable
Characters:
1.Small size dc brushless motor with low speed and big torque
2.Suitable to small diameter, low noise and big torque application
3.Can equip with Gear Reducer
Model Voltage(V) No Load Rated Load Stall
Operating Range Rated Speed (rpm) Current (A) Torque (g.cm) Speed (rpm) Current (A) Output P. (W) Torque (g.cm) Current (A)
BL3640i-V1 8~16V 12 4769 0.16 146.7 4006 0.818 6.028 917 4.271
BL3640i-V2 8~26V 18 7068 0.19 211.93 6008 1.071 13.055 1412.4 6.066
BL3640i-V3 8~26V 24 8235 0.247 288.2 6835 1.186 20.205 1695.4 5.769

BL3640i


Output Power: 5W~30W Weight: 150g (Approx.)

BL3640IBrushless DC Motor-Typical Application

Home Application: White Goods, Small Appliance, Fanner, Coffee Machine, Milk   Tea Machine

Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer, centrifugal   Machine

Industry Equipment: Pump, Portable Screwdriver, Small Compressor

Business Equipment: Printer, Copier, Projector, ATM, Vending Machine

Personal Care: Hair Dryer, Electric Shaver, Massager

Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-50000hrs


BL3640 BL3640I B3640M Drawing

Notice: Data in this typical specification sheet are for other certain customers.

Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.
