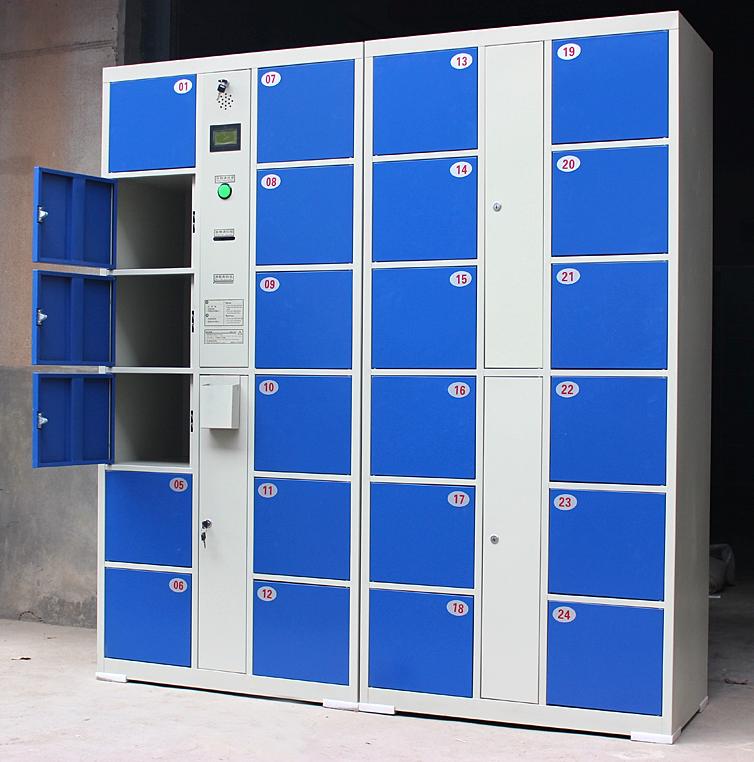

Kegu Motor provide gear motor for intelligent cabinet

Intelligent and technological has become the future development trend of the smart cabinet. Kegu Motor helps these companies achieve their goals in the following areas: Intelligent Cabinet Lock Gearbox Solution and Surveillance Camera Gearbox Solution combined with the IoT to help with cargo collection and monitoring.The intelligent cabinet terminal is based on embedded technology, and collects data through IoT sensors such as RFID, and then transmits the collected data to the controller for processing. After processing, the entire terminal is operated through various sensors, including GSM SMS reminder, RFID identification and more.

12mm plastic planetary gear motor with metal shaft from Kegu

Monitoring system with gear motors
To solve the multi-angle camera surveillance of intelligent cabinet,Kegu Motor adopts to the industry’s smaller6mm,10mm,12mm planetary gearboxes combined with camera stepper motors to achieve requirements of  small volume and large torque. The camera gearbox has two-stage, three-stage, four-stage transmission changes,so the reduction ratio can be changed and and the input speed and torque of the gearbox can be adjusted according to the design requirements of camera motor,then the Intelligent cabinet camera can realize surveillance camera flipping and unscrewing, telescopic.

Cabinet lock with gearboxes will be safer

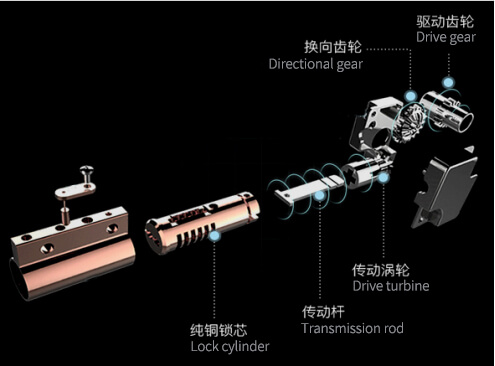

The reason why the intelligent cabinet is called “intelligent” is because the scan code or the input number can be unlocked, and closing door or powering off can be locked.so picking up and receiving are very convenient and safe. As we all know,whether it is a plane lock, a link lock or a cross-type door lock, the safety and reliability of a lock is mainly the lock cylinder.however,its important part is a little gear motor. The unlocking latch of the general cabinet lock is controlled by the front panel, and the Kegu motor intelligent cabinet lock gearbox solution uses the reduction gearbox and the motor in the transmission of the lock cylinder. The cylinder can effectively be controlled through the transmission of the gear motor.This design makes the lock cylinder controllable, high reliability (avoiding the situation that the intelligent lock cannot be opened), long service life, achieving the safety and reliability of unlocking the intelligent drawer cabinet.


The structure of planetary gear box is used in the intelligent cabinet lock gearbox, and the gear box and gear structure performance are optimized at the beginning of the design.Using kinematics simulation and finite element analysis, the gearbox integrated design platform is used to realize the automatic parameter design of the involute planetary gear system, bevel gear, face gear and other mechanisms.By optimizing the gear parameters, such as the displacement coefficient, the tooth coefficient, the pressure angle, the center distance, etc., the meshing shock velocity is reduced. the ratio of the impact velocity is within a certain range, and the impact of the joint circle is reduced, solving the requirement of low noise in use.

12mm plastic planetary gear motor with metal shaft from Kegu
